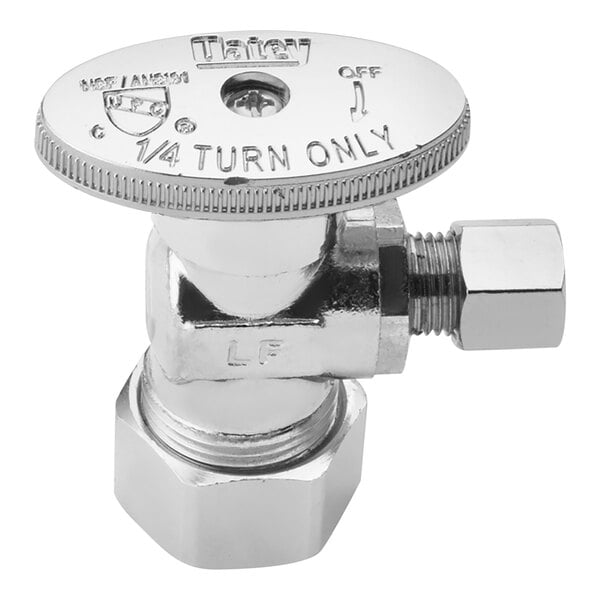

Oatey 4700PCLF 1/4-Turn Angle Water Stop Valve with 5/8" O.D. Inlet (1/2" Nominal Copper) and 1/4" O.D. Outlet
$7.69/Each
Quick Shipping
Usually ships in 1 business day
Product Overview
- Includes a 5/8" O.D. compression inlet (1/2" nominal copper) and a 1/4" O.D. compression outlet
- Full-size handle and PTFE seats provide easy operation
- Durable brass construction with a chrome-plated body and ball
- 1/4-turn design allows for use in tight spaces
- Double O-ring seal helps prevent leaks
Other Products from this Line
$7.19/Each
$7.69/Each
$6.59/Each
$8.19/Each
$7.69/Each
$7.69/Each
$7.69/Each
$7.69/Each
$7.69/Each
$7.19/Each
$7.69/Each
$7.69/Each
$7.19/Each
$11.49/Each
$11.49/Each
- Quantity
- 1/Each
- Shipping Weight
- 0.2 lb.
- Height
- 2 1/4 Inches
- Handle Width
- 1 3/4 Inches
- Features
- Corrosion-Resistant
- Inlet Size
- 5/8 Inch
- Material
- Chrome-Plated Brass
- Maximum Pressure
- 125 PSI
- Maximum Temperature
- 160 Degrees F
- Outlet Size
- 1/4 Inch
- Type
- Angle Stops Valve Parts
Oatey Company 4700PCLF Details
Control the flow of water in your plumbing system with this Oatey water stop valve! This valve is designed for horizontal connections where a water line passes through a wall, making it ideal for faucets, water coolers, refrigerators, ice makers, and dishwashers. It makes it easy to shut off the water during a plumbing emergency or to make repairs. It has a 1/4-turn design for use in tight spaces, and it features a 5/8" O.D. compression inlet (1/2" nominal copper) and a 1/4" O.D. compression outlet.
This high-quality valve features a brass-forged, chrome-plated body, a solid brass stem, and a corrosion-resistant, chrome-plated internal brass ball. It withstands temperatures from 40 to 160 degrees Fahrenheit and has a maximum pressure of 125 PSI. Its full-size handle and PTFE seats provide easy operation. This unit features a double O-ring seal on the stem connection to the ball, helping to prevent leaks.
Overall Dimensions:
Handle Width: 1 3/4"
Height: 2 1/4"
Attention CA Residents:
ICC-ES ASME A112.18.1/CSA B125.1
This item has been tested by the ICC-ES to meet ASME A112.18.1/CSA B125.1 standards for plumbing fittings and fixtures.
