NAKS SWNAKS-KIT20 22" x 30' 36-Piece Stainless Steel Regular-Clearance Single-Wall Grease Duct Kit with 16" and 22" Fixed-Length Ducts, Pant-Leg Ducts, and 87 Degree Elbows

NAKS SWNAKS-KIT20 Details

Vent your cooking equipment safely with this NAKS 36-piece stainless steel single-wall grease duct kit! Made with durable 400 stainless steel, this duct kit is designed to construct (1) 30' commercial exhaust system. This kit is compatible with most exhaust hoods, including Halifax hoods, as well as select NAKS 16" and 22" diameter single-wall grease ducts, sealants, and accessories (sold separately) for building grease duct runs. The recommended duct sizes for heavy-duty hoods are lengths 15 7/16" to 20" for heavy-duty hoods.

This kit features fixed-length ducts and pant-leg ducts as well as elbows, sealants, and hardware used to build a 30' grease duct run in a variety of kitchen layouts with simplified installation and maintenance. It features 16" and 22" diameter components with non-welded overlapping flange connections and fixed-length ducts that can be field-cut to suit your needs. This kit is made with a convenient no-weld design with regular-clearance and is a direct replacement for single-wall, in-field welded steel. It also features a Thermal Ceramics Superwool Plus fiber blanket to improve thermal properties and strength for handling and meets NFPA-96 standards for ventilation control and fire protection in commercial cooking operations.

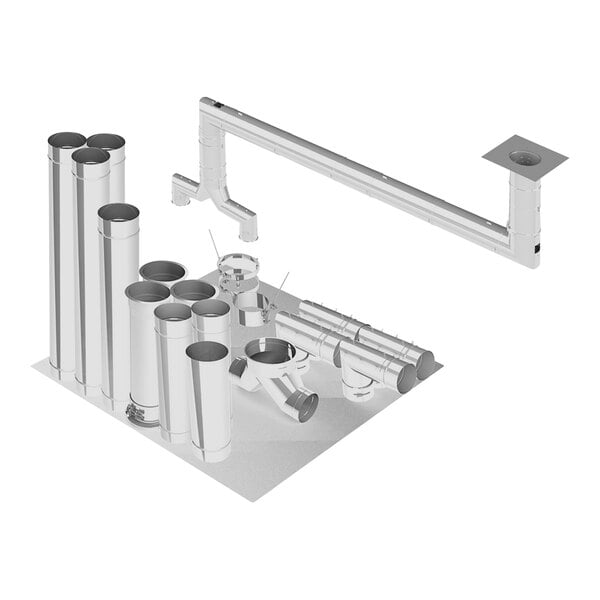

Kit Includes:
- 22" grease duct with access panel
- 87 degree reduction bull-head tee
- 36" x 36" fan plate adapter - end
- (2) 16" no-weld hood adapters
- (2) 16" 87 degree elbows
- (2) 22" 87 degree elbows
- (2) 16" x 24" fixed-length ducts
- (2) 16" cut-length locking bands
- (3) 22" cut-length locking bands
- (4) 22" x 48" fixed-length ducts
- (5) 22" x 24" fixed-length ducts
- (5) Sealants
- (6) 22" light support bands

Overall Dimensions:
Diameter: 16"-22"
Length: 30'
