NAKS SWNAKS-KIT08 14" x 30' 25-Piece Stainless Steel Regular-Clearance Single-Wall Grease Duct Kit with Fixed-Length Ducts and 87 Degree Elbows

NAKS SWNAKS-KIT08 Details

Vent your cooking equipment safely with this NAKS 25-piece stainless steel single-wall grease duct kit with fixed-length ducts and 87 degree elbows! Made with durable 400 stainless steel, this duct kit is designed to construct (1) 30' commercial exhaust system. This kit is compatible with most exhaust hoods, including Halifax hoods, as well as select NAKS 14" diameter single-wall grease ducts, sealants, and accessories (sold separately) for building grease duct runs. The recommended duct sizes for medium-duty hoods are lengths 7 1/2'-9 15/16' and lengths 6'-7 15/16' for heavy-duty hoods.

This kit features the ducts, elbows, sealants, and hardware used to build a 30' grease duct run in a variety of kitchen layouts with simplified installation and maintenance. It features 14" diameter components with non-welded overlapping flange connections and fixed-length ducts that can be field-cut to suit your needs. This kit is made with a convenient straight, no-weld design with regular-clearance and is a direct replacement for single-wall, in-field welded steel. It also features a Thermal Ceramics Superwool Plus fiber blanket to improve thermal properties and strength for handling and meets NFPA-96 standards for ventilation control and fire protection in commercial cooking operations.

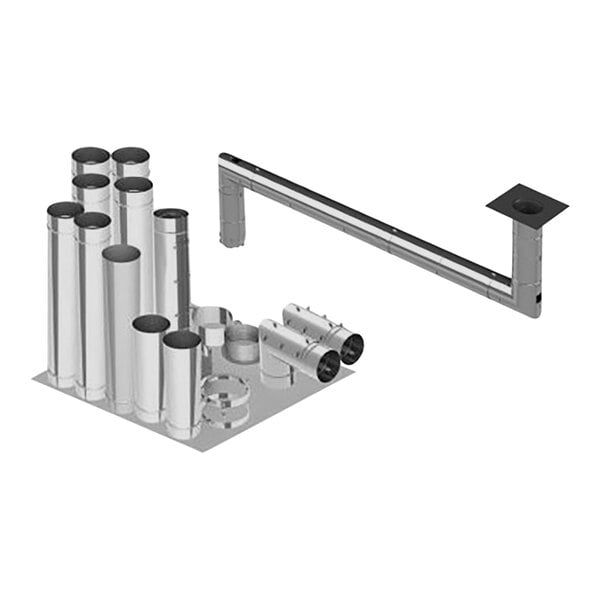

Kit Includes:
- No-weld hood adapter
- 29" x 29" fan plate adapter - end
- 14" grease duct with access panel
- (2) 87 degree elbows
- (3) Sealants
- (3) Cut-length locking bands
- (3) 24" fixed-length grease ducts
- (5) Light support bands
- (6) 48" fixed-length grease ducts

Overall Dimensions:
Diameter: 14"
Length: 30'

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
