Product Overview
- Includes wall mount air handler, outdoor condenser, and 16' lineset
- Features SmartHVAC for comprehensive remote control and programming
- Ductless design is easier to install and requires no wall or ceiling demolition
- Gold fin condenser is corrosion resistant for longer lasting service
- 9,000 BTU cooling; 10,000 BTU heating; 115V
- Quantity
- 1/Each
- Shipping Weight
- 110 lb.
- Width
- 28 1/2 Inches
- Depth
- 7 3/8 Inches
- Height
- 11 3/8 Inches
- Condenser Width
- 30 1/4 Inches
- Condenser Depth
- 11 3/4 Inches
- Condenser Height
- 21 7/8 Inches
- Voltage
- 115 Volts
- Color
- White
- Features
- Energy Star Qualified NSF Listed WiFi Enabled
- HSPF
- 10 Rating
- Mounting Style
- Wall Mounted
- Plug Type
- Hardwire
- Range
- 375 Square Feet
- SEER
- 20.5 Rating
- Total BTU
- 9000 - 10000 BTU
- Type
- DIY Heat Pump Systems

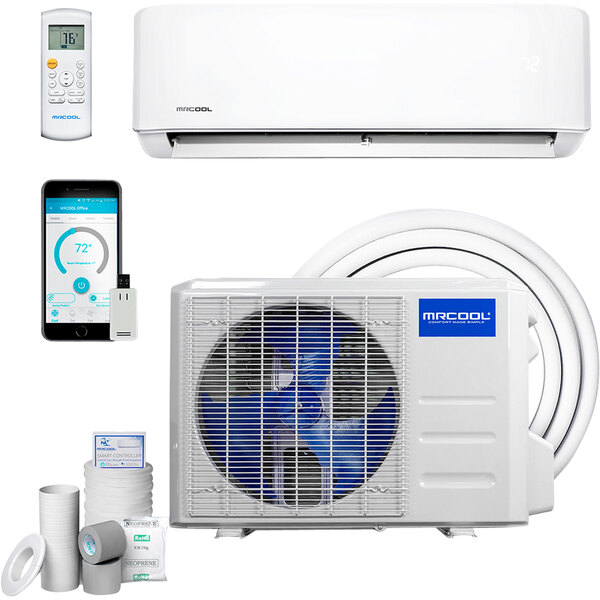

MRCOOL A-09-HP-115C Details
Add both a heating and cooling system to your establishment all in one unit with the MRCOOL A-09-HP-115C Advantage Series ductless mini-split inverter wall mount heat pump system. This ductless system requires no destruction of walls or ceilings like traditional HVAC systems so you benefit from less of a mess and reduced installation costs.
The outside gold fin condenser is corrosion resistant and keeps the noise of the refrigeration system kept to the outdoors for an overall quieter operation. The wall handler mounts directly to a finished wall so it does not have to take up a window. It includes a sleep mode, auto-restart, and has louver position memory for convenience. For even more ease of use, the Advantage Series comes with SmartHVAC, which is WiFi enabled so you can have full remote control with the use of the app via your smartphone or virtual assistant. With this app you can control temperature, fan speed, and which mode the unit is running in, all while being away from your home.

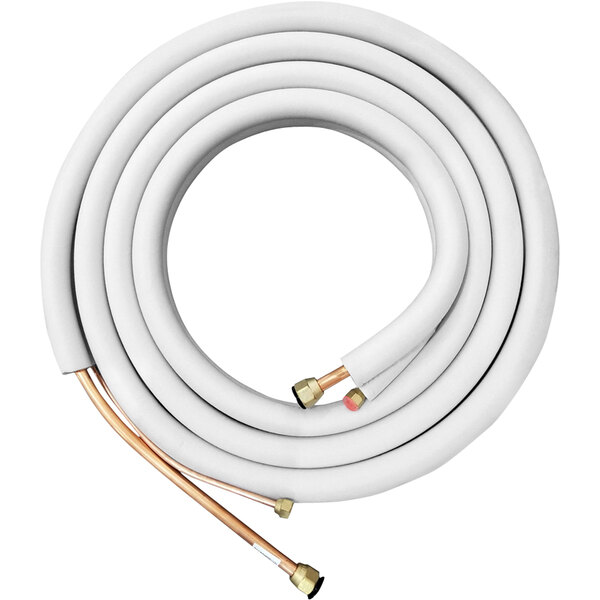

With 9,000 BTU of cooling power and 10,000 BTU of heating power, this unit is capable of heating/cooling an area up to 375 sq. ft. The unit comes with a 16' lineset. The onboard filter is completely removable and washable so you can ensure the incoming air is as clean as possible with periodic cleanings. An installation kit is included and should be installed by a licensed HVAC technician. This unit also comes with a 16' lineset and requires a 115V electrical connection for operation.
Air Handler Dimensions:
Width: 28 1/2"
Depth: 7 3/8"
Height: 11 3/8"
Condenser Dimensions:
Width: 30 1/4"
Depth: 11 3/4"
Height: 21 7/8"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
ETL, US
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States.
ARI / AHRI
This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
