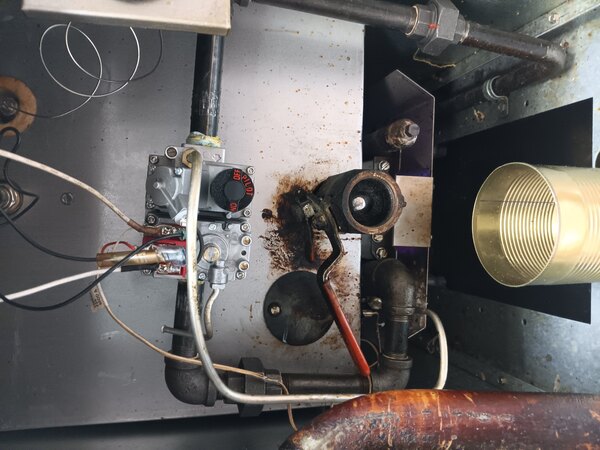

This fryer valve was a direct fit for my Frymaster GF40 at a fraction of the cost of the original valve. It is almost an exact replica of the original valve. Quick and easy installation.
Frymaster Equivalent Millivolt Natural Gas Pilot Combination Valve for Fryers
Item number 369natvalve
Quick Shipping
Usually ships in 1 business day
Product Overview
- 3/4" NPT inlet, outlet, and optional side outlet

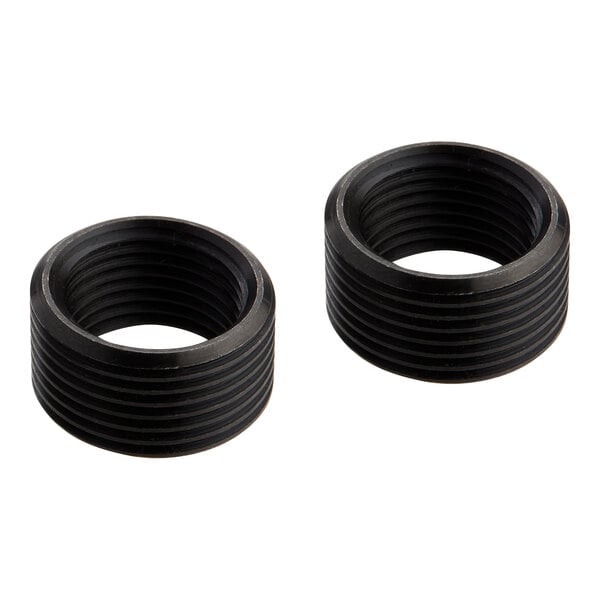

- Includes (2) 3/4" to 1/2" bushing reducers and (2) 3/4" plugs
- 250mV - 750mV electrical safety rating
- Max inlet pressure: 1/2 psi
- Compatible with a variety of Frymaster natural gas fryers and ovens
UPC Code:400014196520
- Quantity
- 1/Each
- Shipping Weight
- 1.5 lb.
- Width
- 3 1/2 Inches
- Depth
- 3 Inches
- Height
- 4 Inches
- Type
- Burner Parts Mechanical Parts
Details
This millivolt natural gas combination valve can be used to replace the one that came standard on your Frymaster fryer or oven. This valve has 3/4" NPT threads on the inlet, outlet, and optional side outlet, but can be configured to 1/2" with the 2 included bushing reducers. It uses a 1/4" male terminal and comes with 2 3/4" plugs. The max inlet pressure is 1/2" psi (14" W.C.) and the default outlet pressure is 3.5" W.C. for natural gas. The gas cock dial is marked "Off - Pilot - On". It boasts an electrical safety rating of 250mV - 750mV, and a working temperature rating of -10 - 175 degrees Fahrenheit. The maximum flow capacity (at 1" pressure drop) is 260,000 BTUs per hour for natural gas.
Overall Dimensions:
Width: 3 1/2"
Depth: 3"
Height: 4"
Attention CA Residents:Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
By using this AI-powered search, you agree to our Terms of UseOpens in new tab and Privacy PolicyOpens in new tab.
Frequently Asked Questions From Customers
Is this part something I can install myself?
This item should be installed by a qualified service technician with the proper training necessary to install this part.
Resources and Downloads
A PDF viewer is required to view this product's information. Download Adobe Acrobat softwareOpens in new tab
64 Compatible Models
- Frymaster MJ350 (Natural Gas, Millivolt Controls)
- Frymaster MJ340 (Natural Gas, Millivolt Controls)
- Frymaster MJ250 (Natural Gas, Millivolt Controls)
- Frymaster MJ240 (Natural Gas, Millivolt Controls)
- Frymaster MJ1CF MILLIVOLT NAT
- Frymaster MJ150 (Natural Gas, Millivolt Controls)
- Frymaster MJ140 (Natural Gas)
- Dean by Frymaster GF40 NAT
- Dean by Frymaster GF14 NAT
- Frymaster 31814GF (Natural Gas, SMART4U Lane Controls)
- Frymaster 31814GF (Natural Gas, Digital Controls)
- Frymaster 31814GF (Natural Gas, CM 3.5 Controls)
- Frymaster 31814GF 3000 NG
- Frymaster 21814GF (Natural Gas, SMART4U Lane Controls)
- Frymaster 21814GF (Natural Gas, SMART4U 3000 Controls)
- Frymaster 21814GF 3000 NG
- Frymaster 21814GF (Natural Gas, Digital Controls)
- Frymaster 21814GF (Natural Gas, CM 3.5 Controls)
- Frymaster 11814GF (Natural Gas, SMART4U Lane Controls)
- Frymaster 11814GF (Natural Gas, SMART4U 3000 Controls)
- Loading more products...
Equivalent Items
- Frymaster 8072427
- Frymaster 8073645
