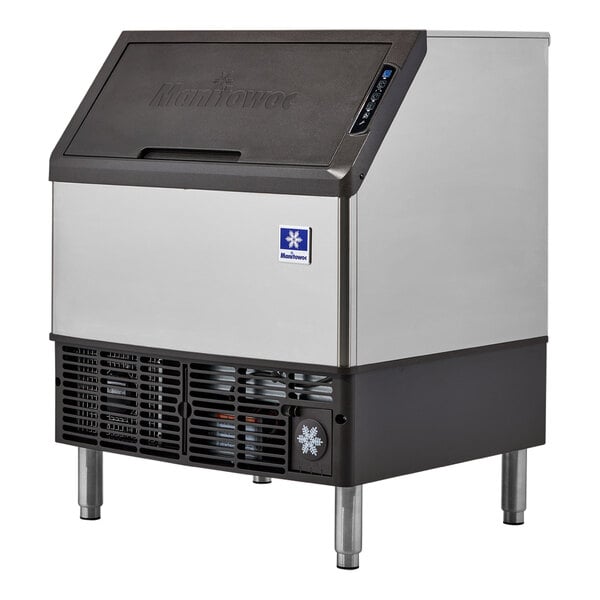

Manitowoc UYP0310A-161B NEO 30" Air Cooled Undercounter Half Dice Ice Machine with 119 lb. Bin - 115V, 330 lb.
Product Overview
- Produces up to 330 lb. of ice per day and stores up to 119 lb.
- Makes 3/8" x 1 1/8" x 7/8" half dice cubes
- Pop-out air filter and removable bin for quick cleaning and maintenance
- Simple, intuitive control and indicator panel
- Easy-access door slides up and out of the way
- Quantity
- 1/Each
- Shipping Weight
- 208 lb.
- Width
- 30 Inches
- Depth
- 28 1/2 Inches
- Height
- 38 1/2 Inches
- Amps
- 8 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- 24 Hour Ice Yield
- 330 Pounds
- Bin Storage Capacity
- 119 lb.
- Color
- Black Silver
- Condenser Type
- Air Cooled
- Features
- NSF Listed
- Ice Type
- Half Size Cubes
- Installation Type
- Undercounter
- Plug Type
- NEMA 5-15P
- Power Usage
- 5.85 kWh per 100 lbs.
- Refrigerant Type
- R-290
- Type
- Ice Machines
- Water Inlet Size
- 3/8 Inches
- Water Usage
- 15.5 Gallons Per 100 lbs.
Manitowoc Ice UYP0310A-161B Details
Make and store ice in one compact machine with this Manitowoc NEO undercounter ice machine. This air cooled ice machine combines impressive ice production, user-friendly controls, and simple maintenance in a space-saving undercounter package! Ideal for making ice in small volume applications or as a supplement to a larger ice machine, this unit can produce up to 330 lb. of half dice cubes per day while boasting an ample 119 lb. bin.
This NEO model features integrated, on-board water filtration that reduces sediment, rust, suspended particles, and chlorine taste and color. A push pad control and indicator panel boasts universally recognizable display icons that show you when the power's on, the bin's full, service is needed, and when there's a clean cycle in progress. There's even a "delay" button that halts ice production for 4, 12, or 24 hours, making it perfect for operations that are only open for portions of a day! Additionally, the updated touchpad has an option to repeat the delay feature and has a filter change reminder, and the buttons are brightly illuminated by LED lights and placed on the slanted bin front so that you can easily press and view them without having to bend over. With its R-290 refrigerant with an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3, this unit increases production while decreasing energy use.
This ice machine features an easy-access door that slides up and out of the way, giving you a clear path to the ice for simple filling of pitchers, glasses, and even transport buckets. It also conveniently includes an ergonomic scoop with a comfort grip handle, along with a holder that can be mounted on either side of the machine for easy storage and access. Built with convenience in mind, the machine's air filter is designed for simple, tool-free removal for quick access during routine cleaning and maintenance, while the bin can be easily removed for full access to the machine's interior components during more thorough cleaning and maintenance. A 115V electrical connection is required for operation.
Overall Dimensions:
Width: 30"
Depth: 28 1/2"
Height: 38 1/2"
Bin Capacity: 119 lb.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
5-15P
This unit comes with a NEMA 5-15P plug.
3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.
ARI / AHRI
This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
Frequently Asked Questions From Customers
(Potable Water + Condensor Water) x (lb. of ice per day / 100)
Example: (12 gal + 124 gal) x (400 lb / 100) = 544 gallons per 24 hours
Need Parts & Accessories?
Show replacement parts and accessories for Manitowoc Ice UYP0310A-161B today!
Resources and Downloads for
Manitowoc Ice UYP0310A-161B
A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Warranty Info
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications. PLEASE NOTE: Parts carry a 90 day limited warranty.
