Product Overview

  • Produces up to 200 lb. of ice per day and stores up to 90 lb.
  • Makes 3/8" x 1 1/8" x 7/8" dice cubes
  • Pop-out air filter and removable bin for quick cleaning and maintenance
  • Simple, intuitive control and indicator panel
  • LuminIce II growth inhibitor defends against viruses and bacteria
UPC Code:400017737188

Manitowoc Ice UYP0190A-161BX Specs

Quantity
1/Each
Shipping Weight
153 lb.
Width
26 Inches
Depth
28 1/2 Inches
Height
38 1/2 Inches
Amps
6 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
24 Hour Ice Yield
200 Pounds
Bin Storage Capacity
90 lb.
Color
Black Silver
Condenser Type
Air Cooled
Features
NSF Listed
Ice Type
Half Size Cubes
Installation Type
Undercounter
Plug Type
NEMA 5-15P
Power Usage
6.36 kWh per 100 lbs.
Refrigerant Type
R-290
Type
Ice Machines
Water Inlet Size
3/8 Inches
Water Usage
15.5 Gallons Per 100 lbs.

Manitowoc Ice UYP0190A-161BX Details

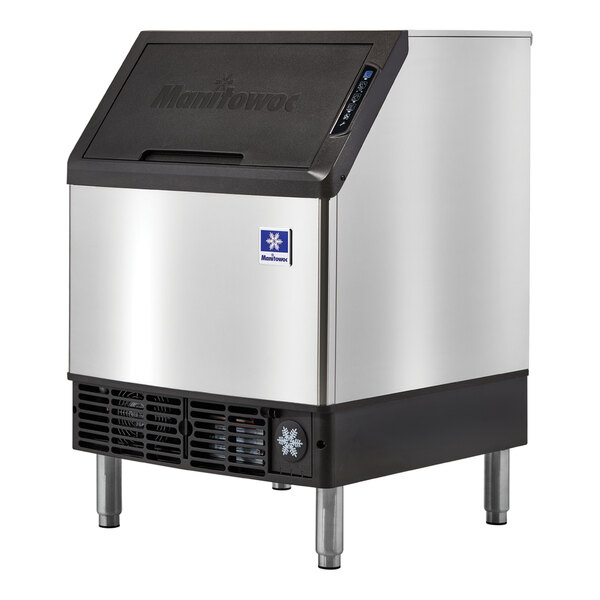

Make and store ice in one compact machine with this Manitowoc NEO undercounter ice machine. This air cooled ice machine combines impressive ice production, user-friendly controls, and simple maintenance in a space-saving undercounter package! Ideal for making ice in small volume applications or as a supplement to a larger ice machine, this unit can produce up to 200 lb. of half dice cubes per day while boasting an ample 90 lb. bin.

This NEO model features integrated, on-board water filtration that reduces sediment, rust, suspended particles, and chlorine taste and color. A push pad control and indicator panel boasts universally recognizable display icons that show you when the power's on, the bin's full, service is needed, and when there's a clean cycle in progress. There's even a "delay" button that halts ice production for 4, 12, or 24 hours, making it perfect for operations that are only open for portions of a day! Additionally, the updated touchpad has an option to repeat the delay feature and has a filter change reminder, and the buttons are brightly illuminated by LED lights and placed on the slanted bin front so that you can easily press and view them without having to bend over. With its R-290 refrigerant with an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3, this unit increases production while decreasing energy use.

With its LuminIce II growth inhibitor, this ice machine is defended against viruses and bacteria. The LuminIce II uses a 254 nm UVC germicidal class light and 185 nm UVV light to create COP (cold oxygen plasma). This also reduces yeast and bacteria growth and easier cleaning with a sped-up cleaning process thanks to less slime build up. Plus, since it uses a UV bulb, it's easy to use with no chemicals to add or maintain.

This ice machine features an easy-access door that slides up and out of the way, giving you a clear path to the ice for simple filling of pitchers, glasses, and even transport buckets. It also conveniently includes an ergonomic scoop with a comfort grip handle, along with a holder that can be mounted on either side of the machine for easy storage and access. Built with convenience in mind, the machine's air filter is designed for simple, tool-free removal for quick access during routine cleaning and maintenance, while the bin can be easily removed for full access to the machine's interior components during more thorough cleaning and maintenance. A 115V electrical connection is required for operation.

Overall Dimensions:
Width: 26"
Depth: 28 1/2"
Height: 38 1/2"
Bin Capacity: 90 lb.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • 3/8" Water Connection

    3/8" Water Connection

    This unit comes with a 3/8" water connection for water supply.

  • ARI / AHRI

    ARI / AHRI

    This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

Ask about this product

Frequently Asked Questions From Customers

How can I figure out the total daily water consumption of my water cooled ice maker?
In order to figure out the total daily water consumption you must take into consideration both condenser cooling water as well as potable ice making water. The equation is as follows:

(Potable Water + Condensor Water) x (lb. of ice per day / 100)

Example: (12 gal + 124 gal) x (400 lb / 100) = 544 gallons per 24 hours
