Product Overview
- Produces up to 525 lb. of ice per day
- 22'' wide, space-saving design
- Makes regular size cubes (1 1/8" x 1 1/8" x 7/8")
- Provides 24 hour preventative maintenance
- Includes EasyRead informative display
- Features DuraTech technology for superior corrosion resistance
- Hinged door provides easy access for efficient cleaning
- Programmable ice production saves energy and reduces waste
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
View All Items

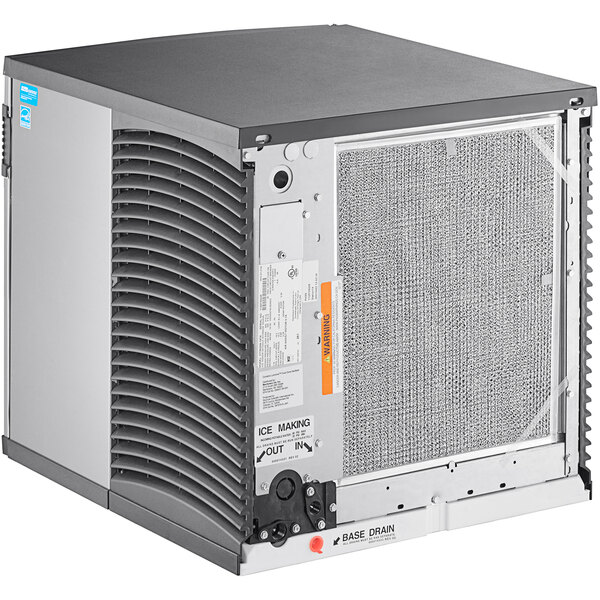

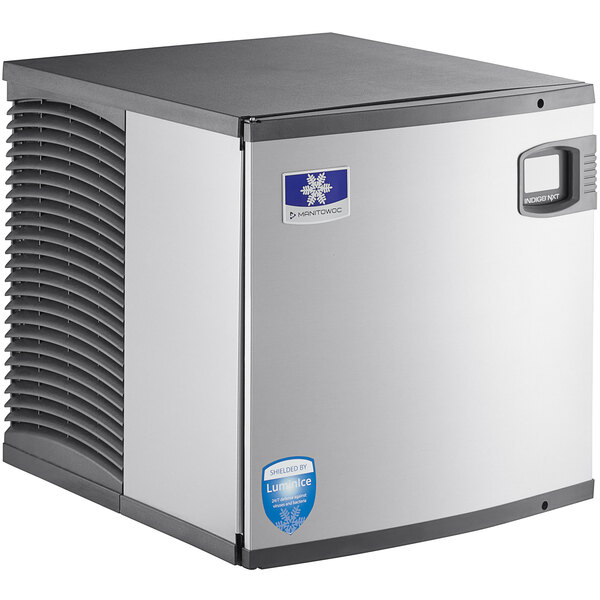

As part of the Manitowoc Indigo NXT, this 22" wide IRT0620A-161 air cooled ice machine is built for maximum convenience with the most innovative technology.
With this Manitowoc IRT0620A-161 air cooled ice machine, you'll find that making ice is easier and more efficient than ever. Designed with an array of convenient features, from its EasyRead display to its state-of-the-art intelligent diagnostics, this unit provides only the best user experience and the most efficient ice production.
Kitchen Innovations Award Winner
This item is a recipient of the Kitchen Innovations® Award. Given annually by the National Restaurant Association, this award recognizes items that have made a meaningful impact in the foodservice industry.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
CE Listed
This product complies with the standards imposed by Conformance European (CE).
UL Listed, US & Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.
ARI / AHRI
This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
Easy and Efficient to Use
The Manitowoc IRT0620A-161 ice machine can make up to 525 lb. of regular size ice cubes per day. A customizable ice making schedule allows for fluctuations in daily levels of production. Simply program the machine to produce ice by On/Off Time or Ice Volume.
EasyRead Display
This machine's EasyRead display communicates operating statuses to your staff, as well as cleaning reminders, and asset information through an eye-catching blue illuminated display.
Innovative Features
Its innovative technology allows you to easily improve energy management, set proper ice production levels, streamline cleaning processes, ease food safety concerns, maintain ice quality, and quickly receive up-to-date service information.
Sanitary Design
The unit features an easy-to-clean food zone with removable water-trough, distribution tube, curtain, and sensing probes. Plus, select components are made from AlphaSan microbial material for increased food safety.
Great Durability
A hinged door provides easy access into the unit, while the DuraTech exterior fights corrosion and resists fingerprints and dirt. This makes for a long-lasting sleek appearance.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
Frequently Asked Questions From Customers
Additionally, adapter and deflector kits can be used to match up ice machines with other types of bins / dispensers. When available, literature from the manufacturer regarding bin / dispenser / machine compatibility and adapter / deflector kits is also included on our product pages and is kept as up-to-date as possible. If you have any questions, our Customer Solutions team is also happy to help!
Watch More Videos
Manitowoc: Removal from Service & Winterization Indigo NXT
Learn how to properly remove your Manitowoc Indigo NXT ice machine from service and prepare it for winter by watching this informative video.
Hello, and welcome to Manitowoc Ice service training center, here in Manitowoc, Wisconsin. My name is Jonathan, and today we're going to show you how to remove an ice machine from service and winterize it. We're going to look at 2 ice machines today, an IYT0450A air-cooled ice machine and an IYT0450W water-cooled ice machine. The water-cooled ice machine winterization instructions will be a little more in-depth than the air-cooled instructions. Please note, these instructions are intended for use by trained ice machine technicians. For safety, you can find more detailed information in your installation, operation, and maintenance manual that comes with the ice machine, or you can download a copy of this from our website, www.manitowocice.com. The following procedure is for all Indigo NXT models, including water-cooled ice machines. Prior to removing an ice machine from service and winterization, it's important to clean and sanitize the ice machine as discussed in the detailed cleaning and sanitation video, as well as the installation, use, and care manual. After cleaning and sanitizing the ice machine, insure the ice machine is turned off. Turn off the water supply, disconnect the incoming ice-making water line - marked as "in" - and the ice-making drain line - marked as "out" - at the rear of the ice machine. Don't forget about draining the water trough by removing it. The ice machine should still be energized, so navigate to the enable or relay screen in the service menu by pressing "menu", "service", "diagnostics", "control board", and then press "enable all relays". This is to energize and open the water inlet and dump valve. Blow compressed air or dry nitrogen in both incoming water and drain openings at the rear of the ice machine to remove all water from the lines. It's recommended to use 50 PSI air pressure, or nitrogen, and not to exceed 80 PSI. For water-cooled models, you'll need to blow out the water from the condensing coils. Water-cooled condenser models use water to cool the refrigeration system, a tube-in-tube heat transfer. If the ice machine is exposed to below-freezing temperatures with water in the condenser, it could lead to rupturing the refrigeration lines and system contamination. It's very important that you blow compressed air through the condenser until no water remains. Damage to the condenser from freezing temperatures is not covered under warranty. Disconnect the incoming water and drain lines for the water-cooled condenser. Start the ice machine in the ice making mode and wait for the freeze cycle to begin. This will take approximately 3 minutes. The increasing pressure will open the water regulator valve, and you may see water start to come out of the condenser connections. This is a sign that the regulating valve is opening. At this point, take your compressed air or dry nitrogen and start putting pressure through the condenser until no water remains. As soon as all the water has stopped coming out, turn off the machine immediately so that the machine does not trip out on a high pressure situation. Next, disconnect the electrical power and perform a lockout-tagout procedure. Then, replace all the panels. And there you have it: removal from service and winterization procedure is complete. Hope to see you again soon in one of our informative videos or webcasts here from Manitowoc, Wisonsin. See you soon!
Compare to Other Products
Price
Voltage
24 Hour Ice Yield
Ice Type
Installation Type
Power Usage
Type
Water Usage
- Width:
- 22 Inches
- Depth:
- 24 1/2 Inches
- Height:
- 21 1/2 Inches
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:Need Parts & Accessories?
Show replacement parts and accessories for Manitowoc Ice IRT0620A-161 today!
Resources and Downloads for
Manitowoc Ice IRT0620A-161
Specsheet
Manual
Manual
Instructions
Warranty
Maintenance Guide
Service Manual
BrochureA PDF viewer is required to view this product's information. Download Adobe Acrobat software
Warranty Info
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. Your warranty will be voided if installed in non-commercial or residential applications.
Equivalent ItemsEquivalent ItemsEquivalent items and any associated illustrations or descriptions are presented for your reference. These are items which, based on available manufacturer information, are comparable to the stated original item. These items are not necessarily authorized, sponsored, or endorsed by the manufacturer of the stated item, or by the manufacturers of equipment compatible with the stated item; any OEM names mentioned are registered trademarks.
| Manitowoc Ice IR-0520A (Formerly) |
