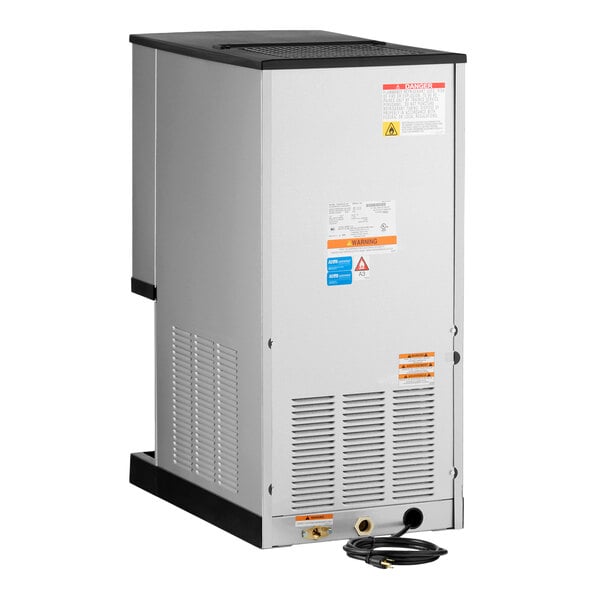

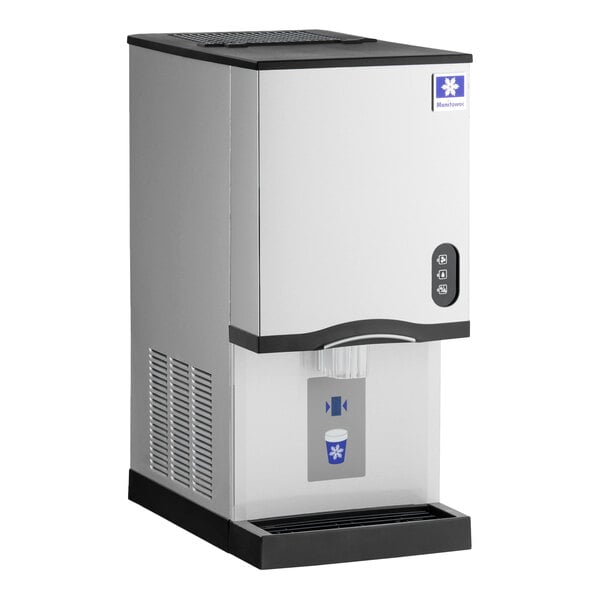

Manitowoc CNP0201A-161N 16 1/4" Air Cooled Countertop Nugget Ice Maker / Dispenser - 10 lb. Bin with Solid Panel Sensor Dispensing - 115V
Item number 499cnp201naaMFR number CNP0201A-161N
Works With
$5,802.00/Each
Contact us for details
Start a Live ChatMon-Thu 8AM-8PM EST · Fri 8AM-6PM EST · Sat 9AM-4PM EST
- Apply, opens link in this tab
Earn up to $174.06 back (17,406 points)
(17,406 points) with a Webstaurant Rewards Visa® Credit Card
Usually Ships in 3 Business Days from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Makes up to 285 lb. of ice per day; stores up to 10 lb.
- Automatic, sensor-activated dispensing with blue LED lighting
- Three dispensing options: ice, water, or ice and water with a solid panel cover
- DuraTech™ front panel for easy cleaning and fewer hard water stains
- Uses R-290 refrigerant; 115V
UPC Code:400017973531
Works With
- Quantity
- 1/Each
- Shipping Weight
- 184 lb.
- Width
- 16 1/4 Inches
- Depth
- 24 Inches
- Height
- 35 Inches
- Power Cord Length
- 6 Feet
- Height to Dispenser
- 12 1/2 Inches
- Amps
- 7.8 Amps
- Phase
- 1 Phase
- Voltage
- 115 Volts
- 24 Hour Ice Yield
- 285 Pounds
- Ambient Temperature Range
- 45 - 110 Degrees F
- Bin Storage Capacity
- 10 lb.
- Condenser Type
- Air-Cooled
- Dispenser Style
- Hands Free Sensor
- Features
- LED Lighting NSF Certified Water Dispenser
- Ice Type
- Chewable Nugget
- Installation Type
- Countertop
- Plug Type
- NEMA 5-15P
- Refrigerant Type
- R-290
- Total BTU
- 2,300 BTU
- Type
- Ice Machines / Dispensers
- Water Inlet Size
- 3/8 Inches
- Water Pressure Range
- 20 - 80 PSI
- Water Temperature Range
- 45 - 90 Degrees F
Manitowoc Ice CNP0201A-161N Details
The Manitowoc countertop ice machine and water dispenser can produce up to 285 lb. of bite-sized, chewable nugget ice per day in a convenient, space-saving design! For easy use, this unit has a hands-free, automatic sensor dispensing system that is illuminated by a blue LED light for excellent visibility and aesthetic appeal. It boasts a 10 lb. storage capacity in a narrow 16 1/4" wide footprint with drain connection at the back of the unit and optional bottom drain connection for flush mounting, allowing you to keep plenty of ice ready for busy times without sacrificing valuable countertop space.
There are three dispensing options to choose from: "Ice Only," "Water Only," or "Ice and Water." Plus, the solid panel covers the dispensing options so you can set it and forget it without worrying about staff or customers changing the setting. Great for healthcare, cafeteria, and break room applications, the nugget ice also offers an 85% ice-to-water ratio for maximum cooling effectiveness and minimal drink dilution and is softer and more chewable than other ice types. It has an integrated sanitation system for automated cleaning, and a large drain pan to reduce spills.
To ensure easy cleaning and a pristine appearance for years to come, this unit features a unique DuraTech™ front panel that helps protect the dispensing area. This hard, clear coating provides excellent scratch resistance, and it's very easy to wipe clean. This dispenser uses environmentally friendly R-290 refrigerant and requires a 115V electrical connection for operation (6' power cord included).
Overall Dimensions:
Width: 16 1/4"
Depth: 24"
Height: 35"
Bin Capacity: 10 lb.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

NSF Certified
This item is certified by NSF to applicable standards.

CE Marking
This product complies with the standards imposed by Conformance European (CE).

5-15P
This unit comes with a NEMA 5-15P plug.

3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.

UL Certified
This product is certified to applicable standards and requirements by UL Solutions.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
Frequently Asked Questions From Customers
Need Parts & Accessories?
Show replacement parts and accessories for Manitowoc Ice CNP0201A-161N today!
Resources and Downloads for Manitowoc Ice CNP0201A-161N

Specsheet
Opens in new tab
Manual
Opens in new tab
Warranty
Opens in new tab
Extended Warranty
Opens in new tab
Maintenance Guide
Opens in new tab
Brochure
Opens in new tab
Brochure
Opens in new tabA PDF viewer is required to view this product's information. Download Adobe Acrobat softwareOpens in new tab
Equivalent Items
- Manitowoc Ice CNF0201A-161N (Formerly)
