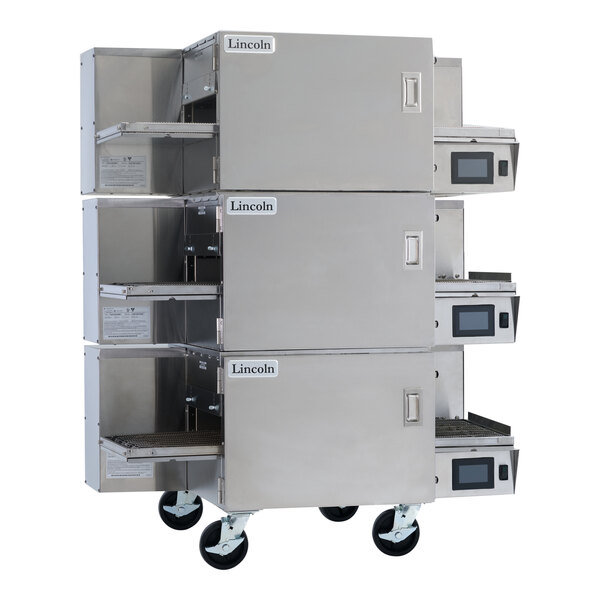

Lincoln Aperion 2424-GUP Liquid Propane Triple Stacked Impinger Conveyor Oven with (3) 24 3/4" Wide Belts - 180,000 BTU

Item number  9362424gl3MFR number  2424-GUP-0001-TRPLSTACK
Free Shipping

$48,435.00/Each

for details

Accessories & Options

Earn up to $1,453.05 back (145,305 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 4-6 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Stainless steel with (3) 24" width chambers and (3) 48 7/16" x 24 3/4" conveyor belts
  • Faster cooking with independent speed and airflow controls for top and bottom fans
  • Programmable, easy-to-use touchscreen controls with 20 preset recipes
  • Removable hinged doors and fingers for effortless cleaning
  • 1 phase design that requires 120V connection
UPC Code:400017730691

Lincoln 2424-GUP-0001-TRPLSTACK Specs

Quantity
1/Each
Shipping Weight
1290 lb.
Width
74 Inches
Depth
39 3/4 Inches
Height
55 1/2 Inches
Belt Length
48 7/16 Inches
Cooking Chamber Length
Large
Baking Chamber Width
24 Inches
Belt Width
24 3/4 Inches Wide
Hertz
60 Hz
Phase
1 Phase
Voltage
120 Volts
Application
High Performance Ovens
Control Type
Touchscreen
Features
Made in America NSF Listed Programmable
Gas Connection Size
2 Inches
Heating Source
Impinged Convection Only
Heating Style
Impingement
Installation Type
Floor Model Freestanding
Material
Stainless Steel
Noise Level
70 dBA
Number of Chambers
3 Chambers
Number of Doors
3 Doors
Plug Type
NEMA 5-15P
Power Type
Liquid Propane
Product Line
Lincoln Aperion
Stackable Models
Triple Stacked
Style
Conveyor
Temperature Range
250 - 600 Degrees F
Total BTU
180,000 BTU
Type
Conveyor Ovens Speed Pizza Ovens

Lincoln 2424-GUP-0001-TRPLSTACK Details

Help your restaurant convey greatness with this Lincoln Aperion liquid propane impinger conveyor oven. This triple stacked, gas-powered oven is made with durable, easy-to-clean stainless steel designed to withstand commercial use and is ideal for a variety of cooking applications, including making pizzas, toasting sandwiches, roasting vegetables, and preparing seafood in both fast and fine dining establishments. This unit accommodates large food items thanks to its 3 sizeable 24" width cooking chambers with (3) 48 7/16" x 24 3/4" conveyor belts and is designed for faster cook times as well as uniform heating and cooking thanks to its high-output design. Versatile, independent speed and top- and bottom-fan airflow controls that range from 40-100 percent ensure balanced airflow on all sides and allow you to customize the cooking process to achieve perfect bake results every time. This item is designed for freestanding use.

This compact, high-output triple stacked oven features a temperature range of 250-600 degrees Fahrenheit, front-removable, automated continuous cook platform conveyors with end stops, and a variable conveyor speed with a range of 20 seconds to 30 minutes. It's also designed for easy one-touch belt direction changes. This unit's front-side touchscreen controls offer 20 preset recipes with the ability to display up to 8 preset recipes, ensuring that staff of any skill level can work it. With the ability to cook 30 percent faster than other models of Lincoln ovens, this triple stacked conveyor oven will optimize efficiency in your kitchen and allow for ultimate menu flexibility.

This oven features a 70 dBA rating and a state-of-the-art one-touch ECO mode that maintains the set oven temperature and saves energy costs when the oven is not in use. Removable, hinged front doors allow easy access to internal components for cleaning and maintenance, including removable universal, 2-piece fingers that are also easy to clean and can be removed and reinstalled with ease. This 1-phase triple stacked conveyor oven is compatible with Lincoln Aperion equipment and accessories, including half-pass window doors and split belt options (sold separately) to maximize your output, and it requires a 120V electrical connection for operation.

Overall Dimensions:
Width: 74"
Depth: 39 3/4"
Height: 55 1/2"

Belt Dimensions:
Length: 48 7/16"
Width: 24 3/4"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • 2" Gas Connection

    2" Gas Connection

    This unit comes with a 2" gas connection to be installed by a professional.

  • CSA Design, US

    CSA Design, US

    This item has been certified by the Canadian Standards Association (CSA) to meet applicable certification requirements for gas-fired products used in the United States.

  • CSA Blue Flame, Canada

    CSA Blue Flame, Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet requirements for gas-fired products in Canada.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

Ask about this product
By using this AI-powered search, you agree to our Terms of Use and Privacy Policy.

Frequently Asked Questions From Customers

Can I stack a Lincoln oven on top of another oven?
Yes, however, Lincoln ovens are only meant to be stacked with other Lincoln ovens. Under no circumstances should Lincoln ovens be used in a stacking configuration with other oven brands nor should Lincoln DCTI models be stacked more than 2 units high. Please refer to the operation manual in the resource section for more stacking guidelines.
