IMC/Teddy CMS 14" x 10" Freestanding Hand Sink with 2.2 GPM Deck-Mount Faucet and 18" x 18" Utility / Pot Sink with 5 GPM 60" Swivel-Hose Pot Filler Faucet

IMC/Teddy CMS Details

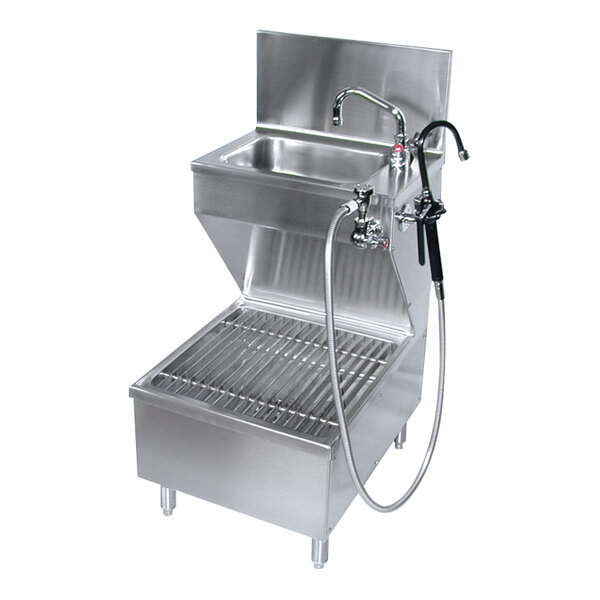

Facilitate efficient cleaning and maintenance tasks in your industrial or commercial facility with this IMC/Teddy stainless steel freestanding combination hand wash / utility sink. Made with durable, fully welded 16 gauge type 304 stainless steel with an attractive brushed satin finish, this combination hand wash / utility sink is designed to withstand the daily wear-and-tear of kitchens, public areas, and other high-traffic settings. Designed to enhance convenience and sanitization, this sink features 1 top hand wash sink for washing hands or cleaning small tools, utensils, and accessories, and 1 bottom utility sink for filling pots with water or cleaning supplies individually. This standalone sink is made with a combination enclosure that covers all plumbing connections in one seamless body, an integrated 10" backsplash that protects your walls from damage, and a removable side panel that allows access to connections and plumbing.

This durable hand wash sink features 1 large 14" x 10" x 5" upper sink to provide a dedicated space for hand washing and washing small items. The top bowl features a 1-hole design and includes 1 deck-mounted swing-spout 6" double pantry faucet controlled by 2 lever handles that allow you to easily operate the flow of water to promote sanitation and ensure proper hygiene in your facility. This faucet offers a 2.2 GPM flow rate at 80 PSI, while the shape provides the right amount of clearance for washing. Below the hand wash sink, this unit features (1) 18" x 18" x 5" utility sink used for filling pots with water or cleaning cans, containers, buckets, tableware, utensils, and other supplies individually. It can also be filled with water for cleaning use throughout the facility. The bottom utility sink includes a swivel-hose pot filler faucet that offers a 5 GPM flow rate at 80 PSI with a pot-filler valve, a vacuum breaker, and a durable 60" length 3-ply hydraulic hose, as well as a welded stainless steel grate made with 1" x 3/16" bars and 1/2" rods. The lower bowl also features a grating support on each side and marine edges on 3 sides. Both sinks are made with a solid, 1-piece design, feature fully coved corners with individual, pitched 1 1/2" drain waste outlets, non-drip edges, and are easy to clean.

This practical, convenient combination sink is designed for installation in public, open-concept work areas. It features a standalone design with 1 5/8" legs and adjustable bullet feet for easy leveling, and it is also multi-point wall-mounted through the rear flanges with 1 offset Z-clip mounting bracket wall strip and included hardware. This item is ideal for use in institutional, commercial, and industrial settings like prep kitchens, janitorial areas, and liquid processing facilities. It's compatible with select IMC/Teddy accessories and is the perfect way to ensure convenient access to water for hand washing, filling, and other utility tasks!

Overall Dimensions:
Length: 25"
Width: 20"
Height: 43"

Upper Bowl Dimensions:
Left to Right: 14"
Front to Back: 10"
Depth: 5"

Lower Bowl Dimensions:
Left to Right: 18"
Front to Back: 18"
Depth: 5"

Upper Faucet Dimensions:
Spout Length: 6"
Faucet Width: 7"
Faucet Height: 7"

Pot Filler Faucet Dimensions:
Spout Length: 6"
Faucet Width: 2 1/2"
Faucet Height: 5 1/4"
