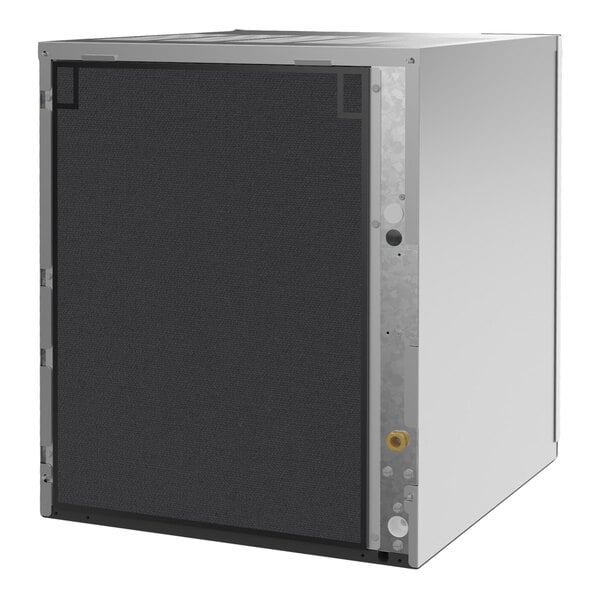

Ice-O-Matic CIM0826FA49 Elevation Series 22" Air-Cooled Full Dice Cube Ice Machine - 896 lb., 208-230V
Product Overview
- Produces up to 896 lb. of full cube ice per day
- Dishwasher-safe food-zone components snap in and out for easy cleaning
- Features 1-touch sanitizing and descaling and a smart LED light
- Dual-exhaust design provides greater installation flexibility
- Universal Smart Harness control board system simplifies installation, maintenance, and diagnostics
Works With
View All Items$8.99/Each
$5,050.00/Each
Out Of Stock$6,320.00/Each
$1,321.00/Each
- C Pure Oceanloch+ L Water Filtration System with Oceanloch+ L Cartridge 1 Micron Rating and 1.67 GPM
$203.99/Each
$1,524.00/Each
$4,000.00/Each
$5,467.00/Each
- Quantity
- 1/Each
- Shipping Weight
- 220 lb.
- Width
- 22 1/4 Inches
- Depth
- 24 1/4 Inches
- Height
- 26 15/16 Inches
- Amps
- 11.8 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 208 - 230 Volts
- 24 Hour Ice Yield
- 896 Pounds
- Ambient Temperature Range
- 50 - 100 Degrees F
- Condenser Type
- Air Cooled
- Features
- Indicator Light Made in America NSF Listed Recyclable
- Ice Type
- Dice Full Size Cubes
- Installation Type
- Modular
- Plug Type
- Hardwire
- Power Usage
- 5.2 kWh per 100 lbs.
- Refrigerant Type
- R-449A
- Type
- Ice Machines
- Water Inlet Size
- 3/8 Inches
- Water Pressure Range
- 20 - 80 PSI
- Water Temperature Range
- 40 - 100 Degrees F
- Water Usage
- 19 Gallons Per 100 lbs.
Ice-O-Matic CIM0826FA49 Details
Help your business run at maximum efficiency with this Ice-O-Matic Elevation series air-cooled ice machine! This ice machine produces up to 896 lb. of 7/8” x 7/8” x 7/8” full cube ice per day. It exceeds energy regulations for ice machines and provides up to 20% more energy efficiency than other comparable models, helping to reduce utility costs. A Harvest Assist feature ensures consistent ice production for the life of the machine while reducing its energy consumption and increasing its capacity. This machine boasts a compact, modular design for installation on top of ice bins or dispensers (sold separately). It has a unique dual-exhaust design with hot air discharge vents on both the top and side to provide greater installation flexibility.
This model is made of corrosion-resistant, fingerprint-proof aluminum with electroless nickel plating on the evaporator plates. It features food-zone components made from recyclable and dishwasher-safe plastic. Each piece simply snaps in and out for cleaning. Plus, the entire unit disassembles in just minutes. This design eliminates hard-to-reach nooks and crannies, making it easy to wipe down the machine. The front-facing evaporator also simplifies cleaning.
This unit features an air-cooled design, and it operates using R-449A refrigerant. It has a Universal Smart Harness control board system with a common configuration, helping to simplify installation, maintenance, and diagnostics. It also includes a smart LED light to indicate the machine's status and when cleaning is required. It features simple, one-touch controls for sanitization and descaling. This ice machine requires a 208-230V electrical connection for operation.
Overall Dimensions:
Width: 22 1/4"
Depth: 24 1/4"
Height: 26 15/16"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Recyclable
This item is able to be recycled under some recycling programs.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
Made in America
This item was made in the United States of America.
UL Listed, US & Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.
