Hoshizaki KM-530MAK 30" Air-Cooled Modular Crescent Cube Ice Machine with Stainless Steel Finish Ice Storage Bin - 545 lb., 115V, 1 Phase

Item number  415kkm530mak

$6,069.00/Each

Accessories & Options

Quick Shipping

Usually ships in 1 business day

Product Overview

  • Produces up to 545 lb. of crescent shaped ice cubes per day
  • Includes 30" ice storage bin with stainless steel finish
  • EverCheck alert system and CycleSaver design
  • CleanAssist 1 hour cleaning process
  • Note: only the ice machine is ARI / AHRI, NSF, and UL certified

UPC Code:400018221907

Specs

Quantity
1/Each
Shipping Weight
316 lb.
Width
30 1/8 Inches
Depth
32 5/16 Inches
Height
68 Inches
Bin Width
30 Inches
Ice Machine Width
30 1/8 Inches
Bin Depth
32 5/16 Inches
Ice Machine Depth
24 1/16 Inches
Bin Height
46 Inches
Ice Machine Height
22 Inches
Amps
10.7 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
24 Hour Ice Yield
545 Pounds
Ambient Temperature Range
45 - 100 Degrees F
Bin Storage Capacity
500 lb.
Condenser Type
Air-Cooled
Features
Adjustable Legs Antimicrobial Made in America Storage Bin
Ice Type
Crescent Cubes
Included
Scoop
Installation Type
Freestanding
Material
Stainless Steel
Plug Type
Hardwire
Refrigerant Type
R-290
Type
Ice Machines Ice Machines with Bins
Water Inlet Size
1/4 Inches
Water Pressure Range
10 - 113 PSI
Water Temperature Range
45 - 90 Degrees F

Details

Easily produce up to 545 lb. of ice per day with this Hoshizaki air-cooled cubelet ice machine. Perfect for virtually any food service operation, hospital, school, or resort, this unit produces crescent cube ice that is great for food displays and in beverages. Each crescent cube measures approximately 1 1/8" x 1/2" x 1 1/2". For both ease of overall cleaning and maximum performance, the machine features integrated ultrasonic bin control. The unit is perfect for hotels, bars, restaurants, and buffets.

For impressive performance, the unit has an EverCheck alert system for dependable use and a CycleSaver design for energy efficiency. The CycleSaver design allows for the production of the same amount of ice in half the cycles of other ice machines, maximizing performance and energy efficiency while consistently producing crescent shaped ice cubes that are both crystal clear in appearance and easy to chew. The EverCheck alert system notifies you when your machine needs to be serviced, making maintenance simpler than ever. Plus, an assisted 1 hour cleaning process is offered through the CleanAssist feature. Its self-diagnostic programming will automatically adjust to changing conditions for reliable use in a variety of settings.

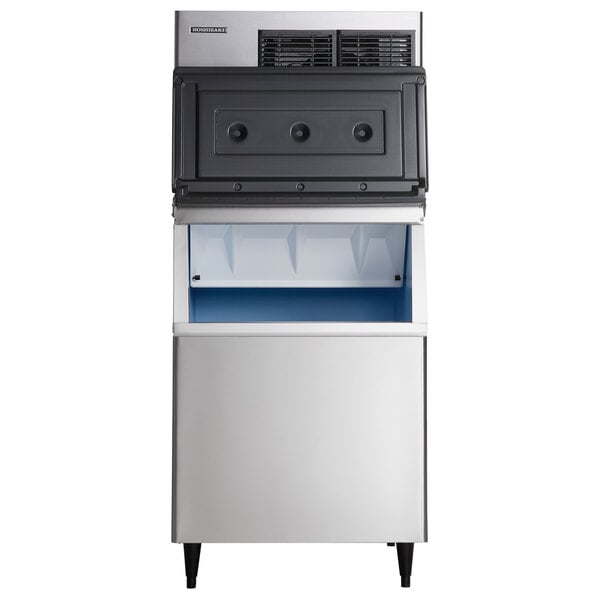

This unit comes with an ice storage bin that has a durable stainless steel finish, which is resistant to rust and corrosion, and a sanitary polyethylene bin liner that is bright blue, which provides high visibility for a clearer view of the ice within. It can hold up to 500 lb. of ice, so that you always have a large supply on hand for busy hours. The ice storage bin's liner is made with H-GUARD Plus antimicrobial agent to keep ice sanitary for the safety and satisfaction of your guests. It also ensures an interior that withstands the test of time as well as the resilient stainless steel exterior. It has (4) 6" adjustable legs that stabilize the unit on uneven floors and lift it off the ground to make cleaning under it simpler, and a blue ice scoop is included with the unit that is also made with H-GUARD Plus Antimicrobial agent for added protection against bacteria formation.

When the demand for ice is high, an operation requires a reliable, durable ice machine. This one is built with a strong and sleek stainless steel exterior and even features a stainless steel dual-sided KMEdge evaporator. When a deeper clean is required, the snap fit parts and removable air filters make cleaning even easier when it comes to cleaning those hard-to-reach areas. This 1-phase unit operates using R-290 hydrocarbon refrigerant. It requires a 115V electric connection, and the ice machine must be hardwired. A cord and plug are not included.

Kit Includes:
- 30" crescent cube ice machine (Item 415KM530MAK)
- 30" ice storage bin (Item 415B500SF)

Overall Dimensions:
Width: 30 1/8"
Depth: 32 5/16"
Height: 68"

Ice Machine Dimensions:
Width: 30 1/8"
Depth: 24 1/16"
Height: 22"

Ice Bin Dimensions:
Width: 30"
Depth: 32 5/16"
Height: 46"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.

  • 1/4" Water Connection

    1/4" Water Connection

    This unit comes with a 1/4" water connection for water supply.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • Antimicrobial

    Antimicrobial

    This item is designed to prevent the growth of harmful bacteria.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

By using this AI-powered search, you agree to our Terms of UseOpens in new tab and Privacy PolicyOpens in new tab.

Frequently Asked Questions From Customers

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.
