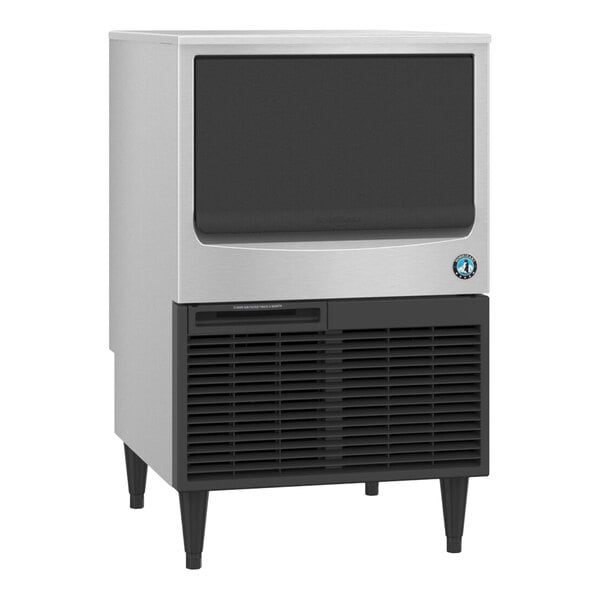

Hoshizaki KM-116BAK 23 3/4" ADA-Compliant Air-Cooled Undercounter Crescent Cube Ice Machine with Built-In Storage Bin - 130 lb., 115V

Item number  415km116bakMFR number  KM-116BAK

$3,240.00/Each

Contact us for details

Start a Live ChatMon-Thu 8AM-8PM EST · Fri 8AM-6PM EST · Sat 9AM-4PM EST

Accessories & Options

What We Offer

shield icon

Protect Your Product

Coverage starting at $164.55

Quick Shipping

Usually ships in 1 business day

Product Overview

  • Produces up to 130 lb. of crescent shaped ice cubes per day and stores up to 53 lb.
  • Durable stainless steel KMEdge evaporator
  • EverCheck alert system and CycleSaver design
  • Self-contained and ADA-compliant construction
  • R-290 refrigerant, 115V, 1 phase

UPC Code:400017980959

Works With

View All Items

Hoshizaki KM-116BAK Specs

Quantity
1/Each
Shipping Weight
147 lb.
Width
23 3/4 Inches
Depth
24 Inches
Height
39 Inches
Power Cord Length
6 1/2 Feet
Amps
3.4 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
24 Hour Ice Yield
130 Pounds
Ambient Temperature Range
45 - 100 Degrees F
Bin Storage Capacity
53 lb.
Condenser Type
Air Cooled
Features
ADA Compliant Energy Star Qualified NSF Certified
Ice Type
Crescent Cubes
Installation Type
Undercounter
Material
Stainless Steel
Plug Type
NEMA 5-15P
Refrigerant Type
R-290
Type
Ice Machines with Bins
Water Inlet Size
1/4 Inches
Water Pressure Range
10 - 113 PSI
Water Temperature Range
45 - 90 Degrees F

Hoshizaki KM-116BAK Details

Designed to produce great tasting ice at an efficient rate, this Hoshizaki air-cooled ice machine combines reliability with top notch energy saving capabilities. This unit can make up to 130 lb. of crescent cube ice per day, and it holds 53 lb. of ice in its built-in storage bin to help you keep up with demand during busy times. Each crescent cube measures approximately 1 1/8" x 1/2" x 1 1/2". This unit has 6" legs, an ADA-compliant slide-in door ice bin opening, and a convenient self-contained undercounter design that can be built-in to your space.

For impressive performance, the unit has an EverCheck alert system for dependable use and a CycleSaver design for energy efficiency. The CycleSaver design allows for the production of the same amount of ice in half the cycles of other ice machines, maximizing performance and energy efficiency while consistently producing crescent shaped ice cubes that are both crystal clear in appearance and easy to chew. The EverCheck alert system notifies you when your machine needs to be serviced, making maintenance simpler than ever.

The KMEdge stainless steel evaporator is designed for increased efficiency with maximized surface area, a faster harvest cycle for increased production, and an increased bonded surface area that creates a stronger, more durable structure. Plus, to further ease maintenance, this unit has a front-in, front-out airflow and contains a removable air filter, which keeps the condenser coil clean to improve performance and longevity. This 1-phase unit operates using R-290 hydrocarbon refrigerant. It requires a 115V electric connection and includes a 6 1/2' power cord with a power switch that is accessible without panel removal. Compatible ice dispensers are sold separately.

Overall Dimensions:
Width: 23 3/4"
Depth: 24"
Height: 39"

Attention CA Residents:
  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • NSF Certified

    NSF Certified

    This item is certified by NSF to applicable standards.

  • ARI / AHRI

    ARI / AHRI

    This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.

  • UL Certified

    UL Certified

    This product is certified to applicable standards and requirements by UL Solutions.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • 1/4" Water Connection

    1/4" Water Connection

    This unit comes with a 1/4" water connection for water supply.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

By using this AI-powered search, you agree to our Terms of UseOpens in new tab and Privacy PolicyOpens in new tab.

Frequently Asked Questions From Customers

How do I match up ice machines, bins, and dispensers?
To help you find the right bin / dispenser / machine combination for your needs, you'll find manufacturer recommended ice bins and dispensers listed in either the Works With items or the Accessories & Options dropdown on each ice machine's product page. Dispensers and ice bins will have manufacturer recommended ice machines listed in the Works With items on their pages. If the bin or dispenser is wider than the ice machine, additional adapters, deflectors, and/or top kits may be necessary to join the machine to the bin. Please refer to the provided documentation on the ice machine and ice bin / dispenser product pages for more information.

Additionally, adapter and deflector kits can be used to match up ice machines with other types of bins / dispensers. When available, literature from the manufacturer regarding bin / dispenser / machine compatibility and adapter / deflector kits is also included on our product pages and is kept as up-to-date as possible. If you have any questions, our Customer Solutions team is also happy to help!
