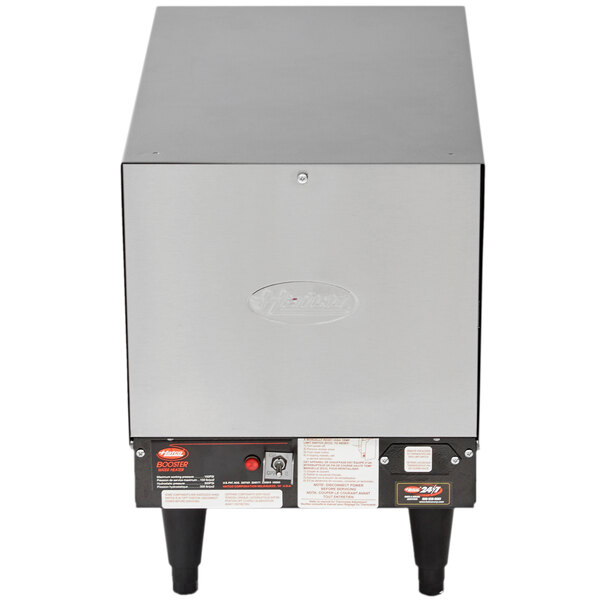

Hatco C-5 6 Gallon Compact Booster Water Heater - 240V, 1 Phase, 5 kW
$2,327.05/Each
Ships free with
Earn up to $69.81 back (6,981 points)with a Webstaurant Rewards Visa® Credit Card
Installation Services
Special Order Shipping
An estimated delivery date will be provided after placing the order
Product Overview
- 6 gallon storage capacity
- Space-saving compact design is easy to install next to dishwasher
- Fiberglass insulation to minimize heat loss

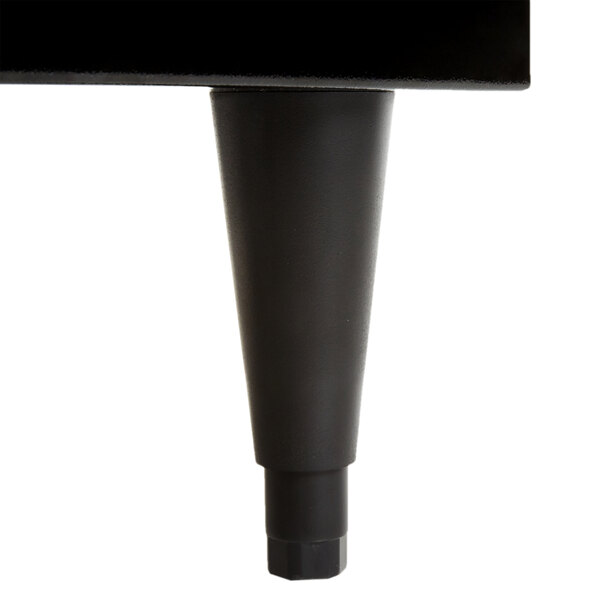

- Stainless steel front panel with 6" legs
- 240V, 1 Phase, 5 kW
- Quantity
- 1/Each
- Shipping Weight
- 120 lb.
- Width
- 13 Inches
- Depth
- 20 3/4 Inches
- Height
- 19 3/4 Inches
- Amps
- 20.9 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 240 Volts
- Wattage
- 5 Kilowatts
- Flow Rate
- 29 - 50 GPH
- Power Type
- Electric
- Tank Capacity
- 6 Gallons
- Usage
- Medium Duty
Hatco C-5 240/1 Details
The space saving Hatco C-5 5 kW compact booster water heater has a 6 gallon capacity to provide plenty of hot final rinse water required to properly sanitize and flash-dry dishes and flatware.

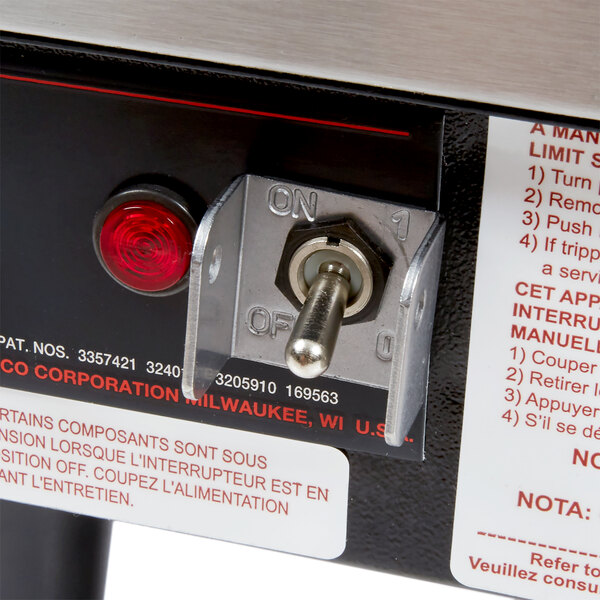

The Hatco C-5 electric booster heater is factory pre-plumbed and pre-wired with a calibrated immersion thermostat and high-temperature limit switch. Fiberglass insulation minimizes heat loss, while the stainless steel front panel and powder coated body provide long-lasting durability. Swing-away front panels with low-water cut-off, control fuses, and transformer allow quick access to probes and elements for easier servicing.
Water Quality Requirements: Incoming water exceeding 3.0 grains of hardness per gallon (GPG) must be treated and softened before being supplied to the booster heater. Water containing over 3.0 GPG will decrease the efficiency and reduce the operating life of the unit.
Overall Dimensions:
Width: 13"
Depth: 20 3/4"
Height (including legs): 19 3/4"
Other Specifications:
Water Temperature Recovery @ 40 Degrees Fahrenheit Rise: 50 GPH
Water Temperature Recovery @ 70 Degrees Fahrenheit Rise: 29 GPH
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
Made in America
This item was made in the United States of America.
UL Listed, US & Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
