Guardian Equipment GBF2173 Surface Mounted Safety Station with Drain Pan and Daylight Drain
Item number 436gbf2173MFR number GBF2173
Earn up to $89.11 back (8,911 points)with a Webstaurant Rewards Visa® Credit Card
Usually Ships in 10 Business Days from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Surface mount is ideal for concrete and other wall types that can't be penetrated
- Stainless steel shower head has a 20 GPM flow control
- Flip-down drain pan routes water back into unit for drainage
- Features a "panic bar" handle that pulls the spray head down and activates water
- Waste water is collected by a daylight drain for drainage out of the front of the unit
Works With
- Quantity
- 1/Each
- Shipping Weight
- 67 lb.
- Width
- 19 1/8 Inches
- Depth
- 3 1/2 Inches
- Height
- 31 1/8 Inches
- Shower Head Diameter
- 10 Inches
- Color
- Silver
- Features
- ADA Compliant Made in America
- Flow Rate
- 20 GPM
- Installation Type
- Recessed
- Material
- Stainless Steel
- Number of Spray Heads
- 2 Spray Heads
- Type
- Emergency Showers Safety Stations
- Water Inlet Size
- 1 Inch
Guardian Equipment GBF2173 Details

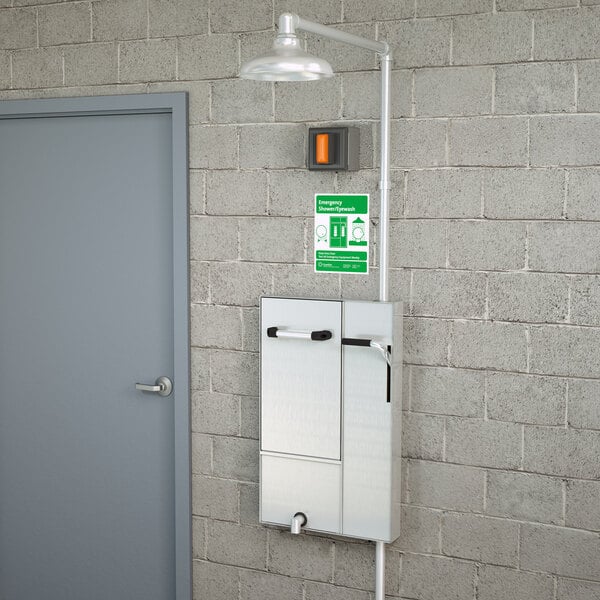

When working with chemicals or other hazardous materials it is vital that you have a solution for direct exposure. With the Guardian Equipment GBF2173 surface mounted safety station with drain pan and daylight drain, you can greatly reduce potential workplace injury and protect workers from irreparable harm. Complete with both eyewash valves and a shower head, this safety station can handle full body rinses as well as eye flushes.
The surface mounted design is perfect for walls that can not be easily penetrated, such as concrete or brick. The pull-down style eye/face wash not only looks nicer than a fully exposed assembly, it also remains better protected from incidental damage. To activate the eye/fish wash just simply pull down the "panic bar" and the flow of water will automatically switch on until the assembly is returned back to the vertical position. All waste water is collected in a drain pan and re-directed to an included daylight drain so that you do not need to tie the system into a drainage system.
An ANSI-compliant identification sign mounts directly to the upright of the station for clear direction on operation. Brushed stainless steel pipes and fittings offer long lasting service life. The stainless steel shower head is 10" in diameter and has a 20 GPM flow control. The shower is activated with a pull down rod that controls a stay-open ball valve that will keep the shower head on as long as it is in the downward position. This unit has a 1" NPT female supply inlet.
Overall Dimensions:
Width: 19 1/8"
Depth: 3 1/2"
Height: 31 1/8"
Shower Head Diameter: 10"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
Made in America
This item was made in the United States of America.
1" Water Connection
This unit comes with a 1" water connection for water supply.
