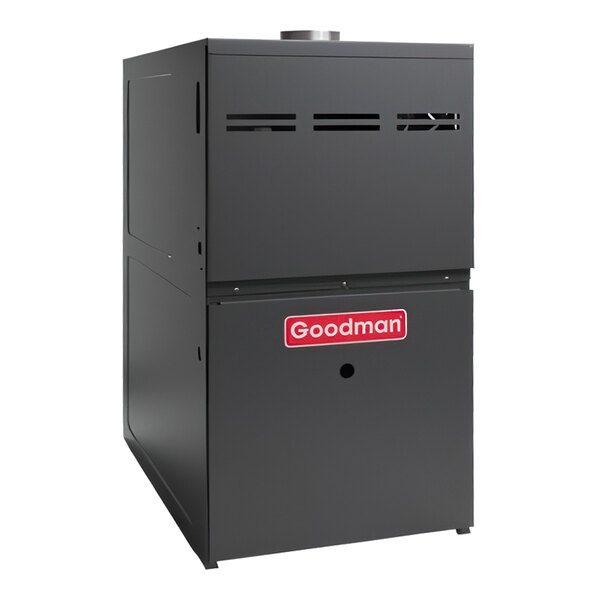

Goodman Single-Stage 9-Speed Horizontal Upflow 80% AFUE Natural Gas Furnace GR9S800804CN - 115V, 80,000 BTU, 1,158 CFM

Goodman GR9S800804CN Details

Upgrade your heating system with this Goodman furnace! Its durable, heavy-gauge steel cabinet with a baked enamel finish ensures long-lasting performance and protection against wear and tear. With an energy-efficient 80% AFUE rating, this unit offers reliable heating while helping to reduce energy costs. The 9-speed, 3/4 hp blower motor with four burners operates at 1,075 RPM and 1,158 CFM, delivering consistent and efficient airflow throughout your space. Plus, this unit’s 80,000 BTU input and 64,000 BTU output allow it to efficiently heat your space, providing comfort and warmth to your customers or employees.

With a temperature rise range of 35-65 degrees Fahrenheit, this furnace offers efficient heating throughout your space. The heavy-duty, aluminized steel dual-diameter tubular heat exchanger and foil-faced insulated heat exchanger cabinet ensure efficient heat transfer and distribution. The heat exchanger is air cooled for optimal performance. Its single-stage gas valve and durable hot-surface silicon nitride igniter are designed for reliable ignition and operation while the 10” x 10” circulator blower with continuous fan speed provides quiet and efficient circulation. Additionally, the single-speed, draft-induced operation ensures minimal noise disruption.

Featuring a self-diagnostic control board with constant memory, this furnace offers advanced monitoring and troubleshooting capabilities for added convenience. The color-coded low-voltage terminals and fault code LED output further simplify troubleshooting and maintenance tasks. Additionally, provisions for an electronic air cleaner and humidifier (both sold separately) enhance indoor air quality, creating a comfortable environment for all.

Ideal for installation where there are space constraints that require a horizontal configuration or where the ductwork is above the furnace, this unit is simple to install and set up. It’s designed to move airflow upward and horizontally and is equipped with convenient left or right connections for gas and electrical service, offering versatility and ease of use. The 1/2” NPT gas connection and recommended 24” clearance for servicing further contribute to the convenience and efficiency of this unit. For added convenience, it's R-32 ready and can be converted to work with an R-410A system. It’s configured for natural gas but can be converted to liquid propane, if necessary. This unit requires a 115V, 1 phase electrical connection and a compatible evaporator coil (sold separately) to operate. It can also be paired with a compatible air conditioner (sold separately) for a complete central air system.

Overall Dimensions:
Width: 21"
Depth: 28"
Height: 33 3/8"
