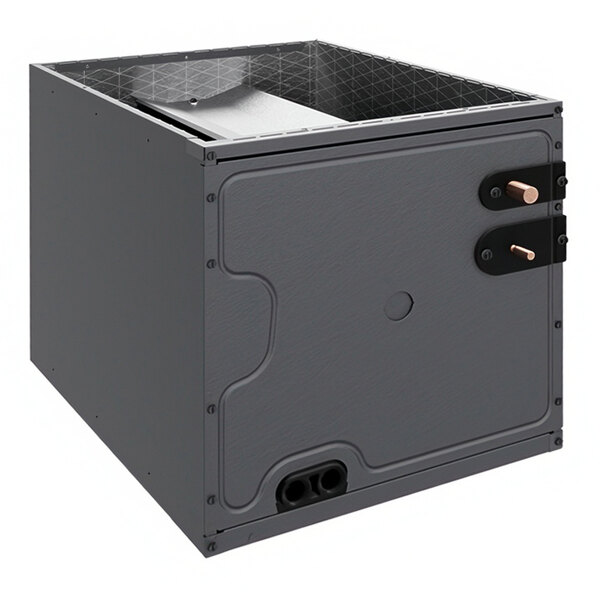

Goodman 3 Ton 17 1/2" x 21" x 26" Painted Cased Upflow / Downflow Aluminum Evaporator Coil with Internal TXV (Cooling Only) CAPTA3626B3 - 36,000 BTU

Goodman CAPTA3626B3 Details

Upgrade your HVAC system with this Goodman evaporator coil. This high-quality unit boasts a 36,000 BTU output, delivering exceptional energy efficiency to help you save on operational costs. It has a 3 ton capacity and a 17 1/2" cabinet width, making it a versatile choice for various cooling applications. The AlumaFin7 design features all-aluminum construction, including tubing, fins, and end plates, ensuring durability. The grooved aluminum tubing provides a larger surface area for efficient heat transfer, while its compact design makes it an effective option for installations in space-constrained environments. The coil is vertically oriented for upflow / downflow applications and is encased in a gray painted cabinet. The galvanized, leather grain-embossed finish not only adds durability but also enhances the aesthetics of your HVAC system.

This evaporator coil is designed to resist potential corrosion, ensuring longevity and reliability for years to come. The internal factory-installed thermal expansion valves (TXV) allow for seamless cooling applications, providing optimal functionality. This unit’s R-32 sensor is specifically engineered to match the lifespan of the coil, providing precise and consistent performance. Its 3/8” liquid connection and standardized copper suction tube stub length with 7/8” suction connection guarantee compatibility with various systems, making installation a breeze.

The drain pan and cabinet door design enhance coil reliability, offering a dependable solution for your HVAC needs. This unit’s UV- and rust-resistant, DecaBDE-free thermoplastic drain pan with secondary drain connections has a low water-retention design, ensuring efficient water drainage and providing added peace of mind against potential leaks. The drain pan rails are intelligently designed for simple removal and repositioning of the internal coils without compromising structural integrity.

With a vertical application and a 21" depth, this evaporator coil offers easy access for attic installations. The single front-access panel allows for convenient maintenance and service while the foil-faced insulation covers the internal casing, reducing cabinet condensation and promoting energy efficiency. For added convenience, it's designed for use with R-32 refrigerant, including the manifolds and circuits, making it an environmentally-friendly choice, and it’s compatible with R-410A chlorine-free refrigerant. This unit requires a compatible air conditioner (sold separately) to operate. It can also be paired with a compatible furnace (sold separately) for a complete central air system.

Overall Dimensions:
Width: 17 1/2"
Depth: 21"
Height: 26"
