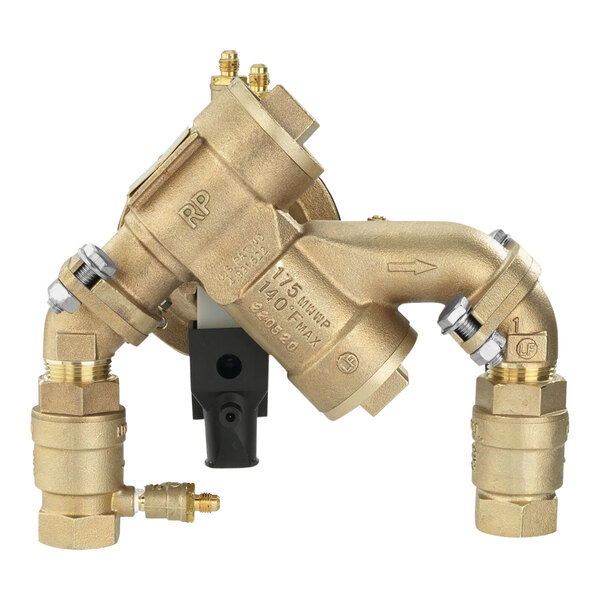

FEBCO F683012 LF825YA-QT-FS 1" Reduced Pressure Zone Assembly

Febco F683012 Details

This FEBCO LF825YA-QT-FS 1" reduced pressure zone assembly is designed to protect against toxic fluids in water services. It's ideal for a variety of applications, including industrial plants, hospitals, morgues, mortuaries, chemical plants, irrigation systems, boiler feeds, and water lines. It features threaded quarter-turn ball valves, test cocks, spring-loaded Y-pattern check valves, and a hydraulically dependent differential relief valve. The modular relief valve and check valves allow for easy maintenance. This assembly can be used with SentryPlus Alert (sold separately) to activate the flood sensor, which detects excessive water discharges from the relief valve.

This unit sports a cast copper silicon alloy body that is made to last. It has a compact integral assembly with a short lay length to help simplify new and retrofit installations. It also boasts 1" flanged joint inlet and outlet connections, allowing for freeze protection or maintenance without the danger of spool substitution. It has smaller enclosures for freeze and vandalism protection, along with replaceable seat rings to ensure longer valve life. It is field-tested for reliable performance. This unit has low head loss and a maximum working pressure of 175 PSI with a temperature range of 32 to 140 degrees Fahrenheit.

Overall Dimensions:
Length: 10"
Width: 8"
Height: 8 1/8"
