Name: Equip by T&S 5PR-2S12-C Deck Mounted 38 1/2" High Pre-Rinse Faucet with Flex Inlets, Low Flow Spray Valve, 44" Hose, 12 1/8" Add-On Faucet, and 6" Wall Bracket
Brand: T&S Brass and Bronze Works
SKU: 5105PR2S12C
Availability: InStock

5105pr2s12c5PR-2S12-C

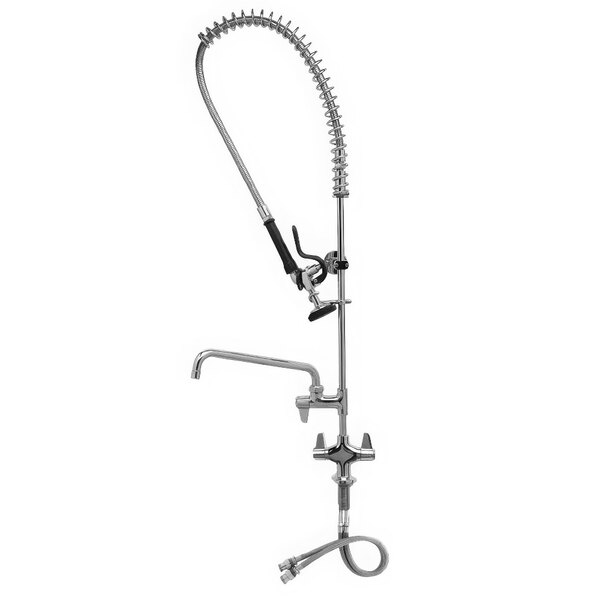

A chrome Equip by T&S deck mounted pre-rinse faucet with flex inlets and a hose.

0:00 / 0:00

Only

$294.49/Each

Earn up to $8.83 back (883 points)with a Webstaurant Rewards Visa® Credit Card

Add to Wish List

Quick Shipping

Usually ships in 1 business day

Product Overview

Single hole base with 2 1/4" flange; 1/2" BSPP male inlet flex hoses
44" flex hose; 1.2 GPM 5SV-C Equip spray valve
Lever handles with color coded screws
Equip ceramic cartridges; can withstand water temperatures up to 140 degrees Fahrenheit
Includes 6" wall bracket and 12 1 /8" add-on faucet; 38 1/2" overall height

UPC Code:671262658003

View all T&S Brass and Bronze Works Pre-Rinse Faucets

plus

Equip by T&S 5HSE44 44" Flexible Stainless Steel Hose for Equip Pre-Rinse Units

$49.99/Each

plus

Equip by T&S 5HSE68 68" Flexible Stainless Steel Hose for Equip Pre-Rinse Units

$63.49/Each

plus

Equip by T&S 5HSE96 96" Flexible Stainless Steel Hose for Equip Pre-Rinse Units

$89.99/Each

plus

Equip by T&S 5HSE84 84" Flexible Stainless Steel Hose for Equip Pre-Rinse Units

$86.99/Each

plus

T&S B-TEE-RGD 3/8" NPT Rigid Tee Assembly for Pre-Rinse Faucets

$69.57/Each

plus

Easyflex White PTFE Thread Seal Tape 1/2" x 520"

$1.99/Each

0:00 / 0:00

T&S: Installing and Converting a Pre-Rinse Unit

This video goes over the simple process of installing or converting a T&S pre-rinse unit. With 2 easy procedures, these faucets are sure to ease your experience.

Quantity: 1/Each
Shipping Weight: 12.33 lb.
Hose Length: 44 Inches
Faucet Width: 5 5/8 Inches
Faucet Height: 38 1/2 Inches
Add-On Faucet: 12 1/8 Inches
Add-on Flow Rate: 4.29 GPM
Add-On Type: Swing
Cartridge Type: Ceramic
Faucet Centers: Single
Finish: Chrome
Handle Type: Lever
Included: Flex Inlets
Material: Brass
Mounting Style: Deck Mounted
Pre Rinse Unit Type: Hose and Spring
Pressure Rating: 125 PSI
Spray Valve Flow Rate: 1.2 GPM
Temperature Rating: 40 - 140 Degrees F
Type: Pre-Rinse Units
Water Inlet Size: 1/2 Inches

T&S Brass and Bronze Works 5PR-2S12-C Details

This Equip by T&S 5PR-2S12-C deck mounted pre-rinse faucet features a 44" flex hose and spring design that provides plenty of versatility in a variety of warewashing applications! A 1.2 GPM low flow spray valve makes it easy to clear food debris off of dishes before washing them, while conserving water and saving you money on your utility bill. Additionally, a 12 1/8" add-on swing faucet makes your sink even more versatile, allowing you to switch between the pre-rinse setup and normal faucet depending on what you need! To make installation easy, it also boasts in-line check valves and 1/2" BSPP male inlets on 18" flexible connector hoses.

The 44" flex hose with spring is great for many pre-rinse applications, and the lever handles have a color coded screw for durability and easy operation. The ceramic cartridges provide excellent durability and leak-resistance since there are no seat washers. The 12 1/8" add-on swing faucet is perfect for times when you need water but don't need a pre-rinse faucet. This unit also includes a wall bracket for added support.

Overall Dimensions:
Faucet Height: 38 1/2"
Faucet Width: 5 5/8"
Add-On Faucet: 12 1/8"

Attention CA Residents:

NSF/ANSI/CAN 61 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.
NSF/ANSI/CAN 372 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

Frequently Asked Questions From Customers

Can I get a spray valve with a higher flow rate (GPM)?

The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.

How is the pre-rinse hose length measured?

Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.

I have a chemical injection system on my compartment sink. Can I use my pre-rinse faucet to supply water to it?

Yes! Item B-TEE-RGD is a rigid tee assembly that installs easily into an existing T&S pre-rinse faucet (or you can use it on a brand new faucet) and provides you with a means to deliver water to a chemical injection system, or other, similar sink accessories that may require a water supply.
