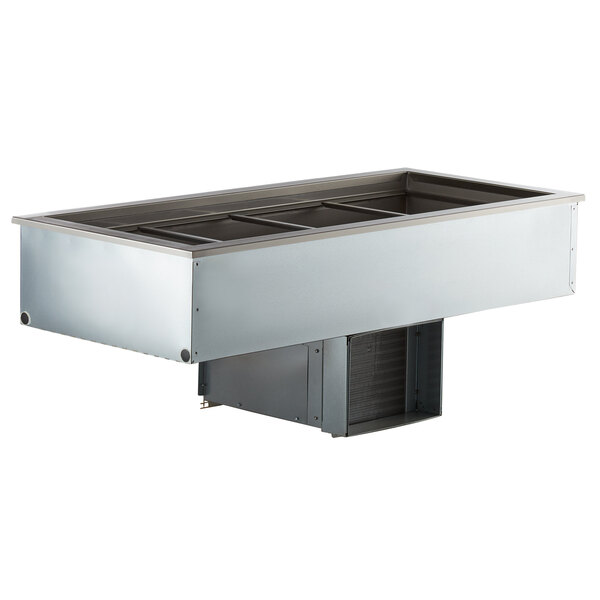

Delfield N8156BP Four Pan Drop In Refrigerated Cold Food Well
Item number Item #: 305n8156bpMFR number MFR #: N8156BP
Item number Item #: 305n8156bpMFR number MFR #: N8156BP
Quick Shipping
Usually ships in 1 business day
Product Overview
- Accommodates four full size food pans

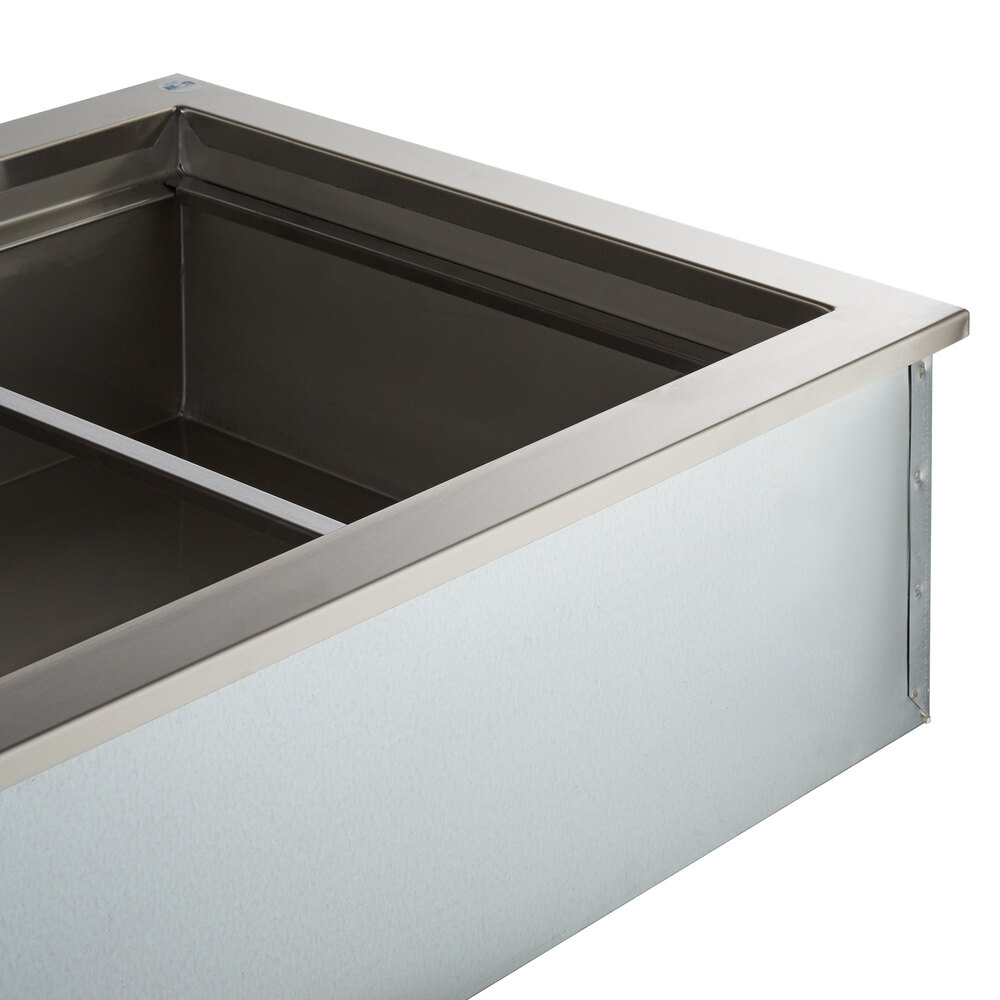

- 20 gauge stainless steel top with 22 gauge stainless steel liner
- Environmentally-friendly polyurethane foam insulation and a push-in perimeter gasket

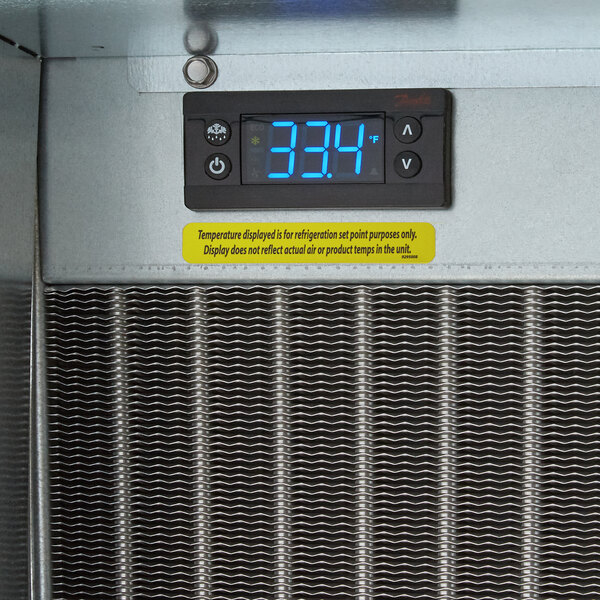

- On / Off switch and temperature control
- Uses eco-friendly R290 refrigerant; 2/7 hp, 115V
Other Products from this Line

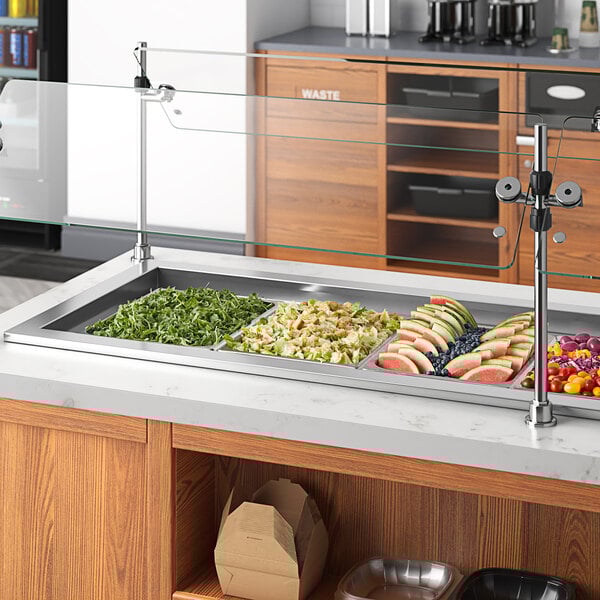

The Delfield drop in refrigerated cold food well is a dependable and professional way to present salad, fruit, gelatin desserts, and other cold foods at your buffet!

This refrigerated cold food well reliably keeps your most famous chilled creations at a safe, even temperature until customers empty the pan and are ready for more. This model can also cool food using ice for unmatched versatility and greater energy savings.

NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

Made in America
This item was made in the United States of America.

5-15P
This unit comes with a NEMA 5-15P plug.

UL Certified
This product is certified to applicable standards and requirements by UL Solutions.

Convenient Design
Thanks to its included adapter bars, this cold food well can hold four full size 12" x 20" food pans up to 6" deep at food safe holding temperatures for an extended period of time. It requires a 55 1/4" x 25" cutout and a 115V electrical connection for operation.

Superior Temperature Retention
This stainless steel drop in refrigerated cold food well is insulated with high-density foam that guarantees superior temperature retention, and an included fitted flange gasket allows you to snugly install this food well into your countertop.

Eco-Friendly Refrigerant

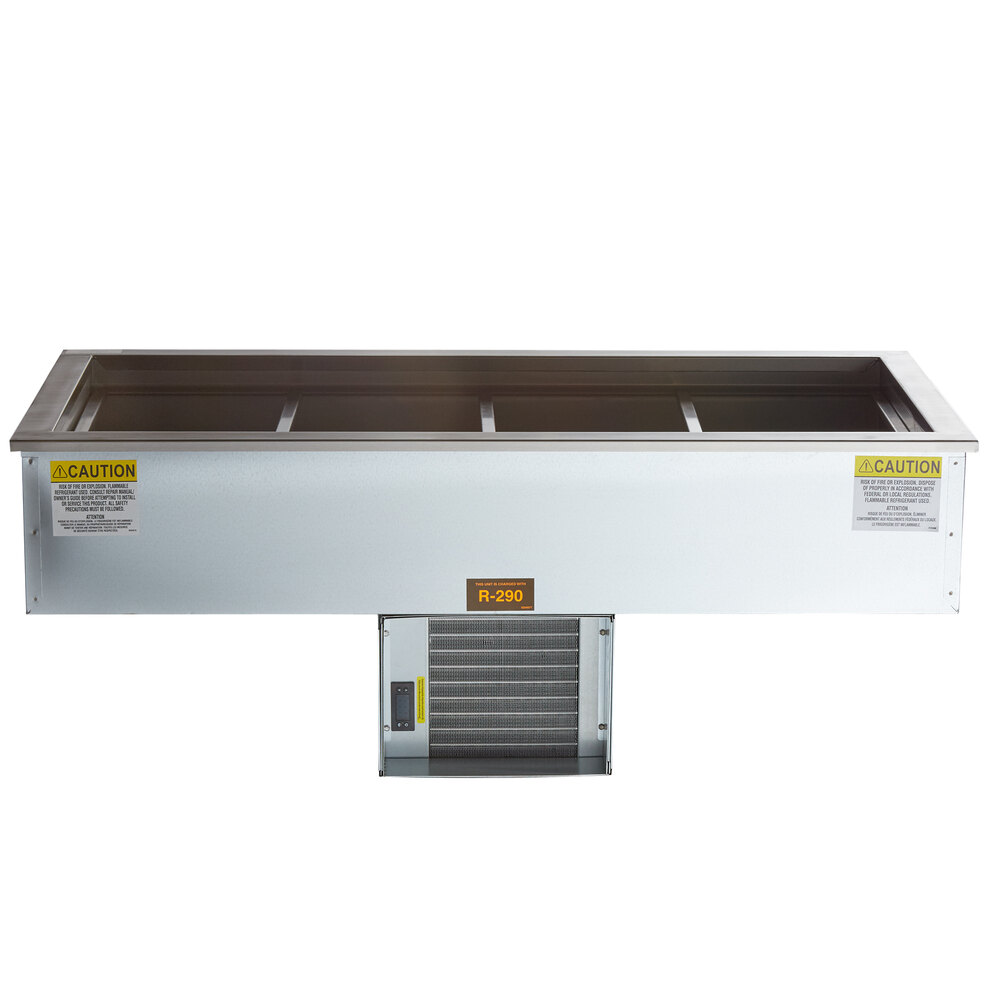

Its bottom-mounted 2/7 hp compressor circulates R290 refrigerant to keep the pan's contents chilled. This specialized refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3, making it an environmentally-responsible choice for your business.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
Frequently Asked Questions From Customers
- Width:
- 56 1/4 Inches
- Depth:
- 26 Inches
- Height:
- 21 7/8 Inches
- Cutout Width:
- 55 1/4 Inches
- Cutout Depth:
- 25 Inches
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Resources and Downloads for
Delfield N8156BP

Specsheet
Opens in new tab
Manual
Opens in new tab
Warranty
Opens in new tab
Brochure
Opens in new tab
Brochure
Opens in new tabA PDF viewer is required to view this product's information. Download Adobe Acrobat softwareOpens in new tab
Resources
Delfield N8156BP Specs
- Quantity
- 1/Each
- Shipping Weight
- 40 lb.
- Width
- 56 1/4 Inches
- Depth
- 26 Inches
- Height
- 21 7/8 Inches
- Cutout Width
- 55 1/4 Inches
- Cutout Depth
- 25 Inches
- Amps
- 3.1 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- Wattage
- 356.5 Watts
- Compressor Location
- Bottom Mounted
- Features
- Made in America NSF Listed
- Horsepower
- 2/7 hp
- Installation Type
- Drop-In
- Material
- Stainless Steel
- Number of Wells
- 4 Wells
- Pan Mounting
- Recessed
- Plug Type
- NEMA 5-15P
- Power Type
- Electric
- Refrigeration Type
- Cold Wall
- Temperature Range
- 33 - 41 Degrees F
- Temperature Settings
- Fixed
- Type
- Refrigerated Food Wells
Equivalent Items
- Delfield N8156B (Formerly)
