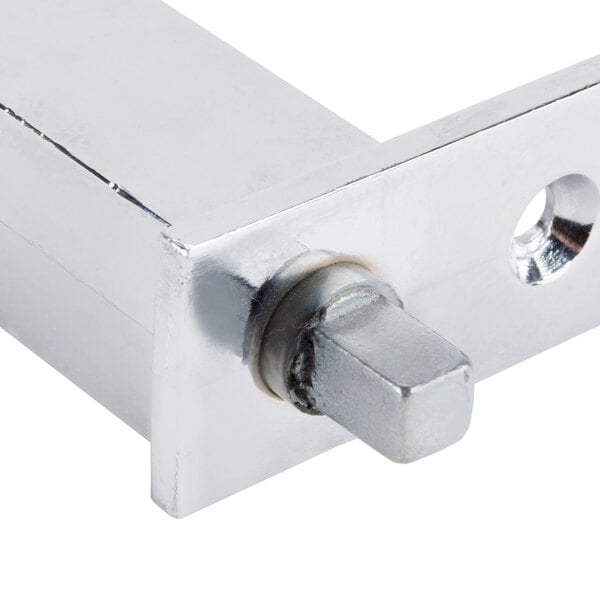

Concealed Hinge Cartridge Assembly

Item number  1703237516

Usually Ships in 2-3 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Includes 1" square brushing and screw
  • Extended pin
  • No stop
  • Reversible cartridge
UPC Code:400010299508

Specs

Quantity
1/Each
Shipping Weight
0.7 lb.
Hardware Type
Cartridge Parts
Type
Hinges / Hinge Kits

Details

This concealed hinge cartridge assembly replaces the one that came with your unit and allows the door to continue to operate smoothly. This hinge assembly has an extended pin with no stop and a reversible cartridge. It includes the brushing and screws needed to install it.

Overall Dimensions
Length: 2 7/8"
Width: 4"
Height: 3/4"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

Ask about this product
By using this AI-powered search, you agree to our Terms of Use and Privacy Policy.

Resources and Downloads

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

7 Compatible Models

  • Delfield 000BFW0030
  • Delfield 3230010
  • Delfield 3234225
  • Delfield 3237509
  • Delfield 3237516
  • Delfield 3237516-S
  • Delfield 3237516S

Equivalent Items

Customer Reviews

5.0

Rated 5 out of 5 stars

1 Customer Reviews

Frequently Mentioned

  • assembly
  • cartridge
  • easy
  • fit
  • hinge
  • install
  • original
  • part
  • perfect
  • piece
Showing 1 of 1 review
Rated 5 out of 5 stars
Review by

Cheryl O. from Taste Of Eden Bistro, LLC

Posted on 08/25/2015

Verified Purchase

We purchased this hinge cartridge assembly for our True TSSU-48-12 after the original piece broke. This part was a perfect fit and was easy to install.
