Champion DH3000 Door-Type High Temperature Dishwashing Machine - 208-240V; 3 Phase
$10,472.00/Each
Login or enter your email to be instantly sent the price!
Start a Live Chat with a Customer Service rep to receive the price!
Mon-Fri 8AM-8PM EST
Sat & Sun: 9am - 4pm EST.
Earn up to $314.16 back (31,416 points)with a Webstaurant Rewards Visa® Credit Card
Special Order Shipping
An estimated delivery date will be provided after placing the order
Product Overview
- Advanced 4 5/16" TFT display includes multi-lingual, user-friendly intuitive condition alerts
- Features Varicycle wash to extend wash time to 16 minutes for heavily soiled wares
- 60 racks per hour; 0.76 gallons per rack
- Includes 1 peg rack and 1 flat rack to hold soiled wares
- Low-water tank heat cut-off helps avoid overheating of the unit
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
View All Items
$63.49/Case
$86.99/Case
$122.49/Case
$108.99/Case
$92.99/Case
$138.49/Case
$99.99/Case
$186.99/Case
- Quantity
- 1/Each
- Shipping Weight
- 430 lb.
- Width
- 31 7/8 Inches
- Depth
- 30 3/8 Inches
- Dishwasher Height
- Standard
- Height (Closed)
- 65 1/4 Inches
- Height (Open)
- 75 5/8 Inches
- Amps
- 40 - 45 Amps
- Hertz
- 60 Hz
- Phase
- 3 Phase
- Voltage
- 208 - 240 Volts
- Wattage
- 5.2 Kilowatts
- Application
- Dishwashers
- Booster Wattage
- 7.5 - 10 Kilowatts
- Dishwasher Style
- Straight / Corner
- Features
- Booster Heater Included Digital Display Energy Recovery Energy Star Qualified Field-Convertible (Electrical) Made in America Multilingual NSF Listed
- Flow Pressure
- 20 - 25 PSI
- High or Low Temp
- High Temp
- Horsepower
- 1 hp
- Incoming Water Temperature
- 110 - 140 Degrees F
- Number of Cycles
- 4 Cycles
- Plug Type
- Hardwire
- Racks Per Hour
- 60
- Type
- Single Rack
- Wash Cycle Time
- 60 - 985 Seconds
- Wash Tank Capacity
- 9.5 gal.
- Water Inlet Size
- 3/4 Inches
- Water Temperature
- 150 - 180 Degrees F
- Water Usage
- 0.76 Gallons Per Rack
Champion DH-3000 3 Details

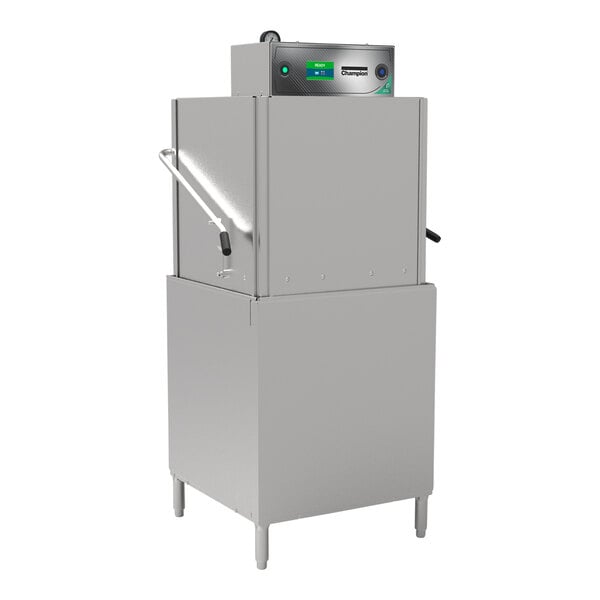

Streamline your dishwashing operation with the Champion DH3000 door-type high temperature dishwashing machine. With one included peg rack and one flat rack, this machine is great for just about any soiled wares. The advanced 4 5/16" TFT display includes intuitive condition alerts with multi-lingual, user-friendly operational guidance. Plus, the enhanced visual on-board diagnostics quickly identify machine faults for rapid resolution and less downtime in your busy commercial kitchens.
This machine can complete a full cleaning cycle in just 60 seconds and cleans up to 60 racks per hour. It uses only 0.76 gallons of water per rack. Rinse sentry automatically extends the wash cycle until the booster reaches the optimal sanitization temperature before the final rinse begins. It also features a Varicycle wash that allows you to extend the wash time to 16 minutes for maximum cleaning of heavily soiled wares.
Featuring both an auto start feature that starts when the door is closed and an automatic drain valve, this machine is simple to operate without requiring constant monitoring by the user. A low-water tank heat cut-off will help prevent overheating of the dishwasher, which could result in operational failure. This unit requires a 208-240V, 3 phase electrical connection for operation. Plus, this unit has a field convertible electric connection and can be converted to single phase power by a qualified electrician.
Overall Dimensions:
Width: 31 7/8"
Depth: 30 3/8"
Height (Open): 75 5/8"
Height (Closed): 65 1/4"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
Made in America
This item was made in the United States of America.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
UL Listed, US & Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.
3/4" Water Connection
This unit comes with a 3/4" water connection for water supply.
Field Convertible (Electrical)
This equipment’s electrical specifications can be modified in the field during installation by a qualified service technician. Be sure to read item content and literature for the specific details of what voltage and phase configurations are possible.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
