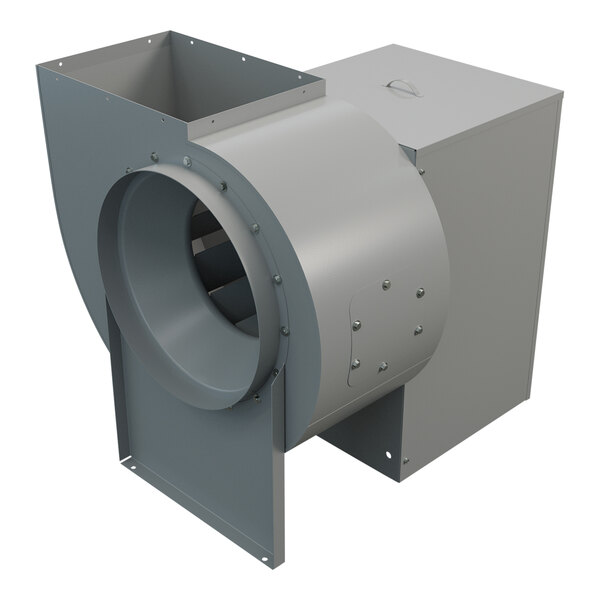

Canarm BI-13RM Series Belt Drive Utility Blower BIRM1330500M - 3,900 CFM, 3 Phase, 5 hp
Usually Ships in 3-5 Business Days from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Provides fresh air in your establishment
- Belt drive system powers the blower’s fan
- Features continuously welded 16 gauge blower housing
- Comes with non-overloading backward inclined welded wheels
- 208-230/460V; 3 phase
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
- Quantity
- 1/Each
- Shipping Weight
- 134 lb.
- Width
- 24 1/2 Inches
- Height
- 30 15/16 Inches
- Phase
- 3 Phase
- Voltage
- 208 - 460 Volts
- Color
- Green
- Gauge
- 16 Gauge
- Horsepower
- 5 hp
- Material
- Metal
- Max CFM
- 3,900 CFM
- Min CFM
- 2,450 CFM
- Motor Type
- Belt Drive
- Power Type
- Electric
- Speeds
- Variable
- Style
- Upblast
- Temperature Rating
- 250 - 400 Degrees F
- Type
- Utility Blowers
Canarm BIRM1330500M Details

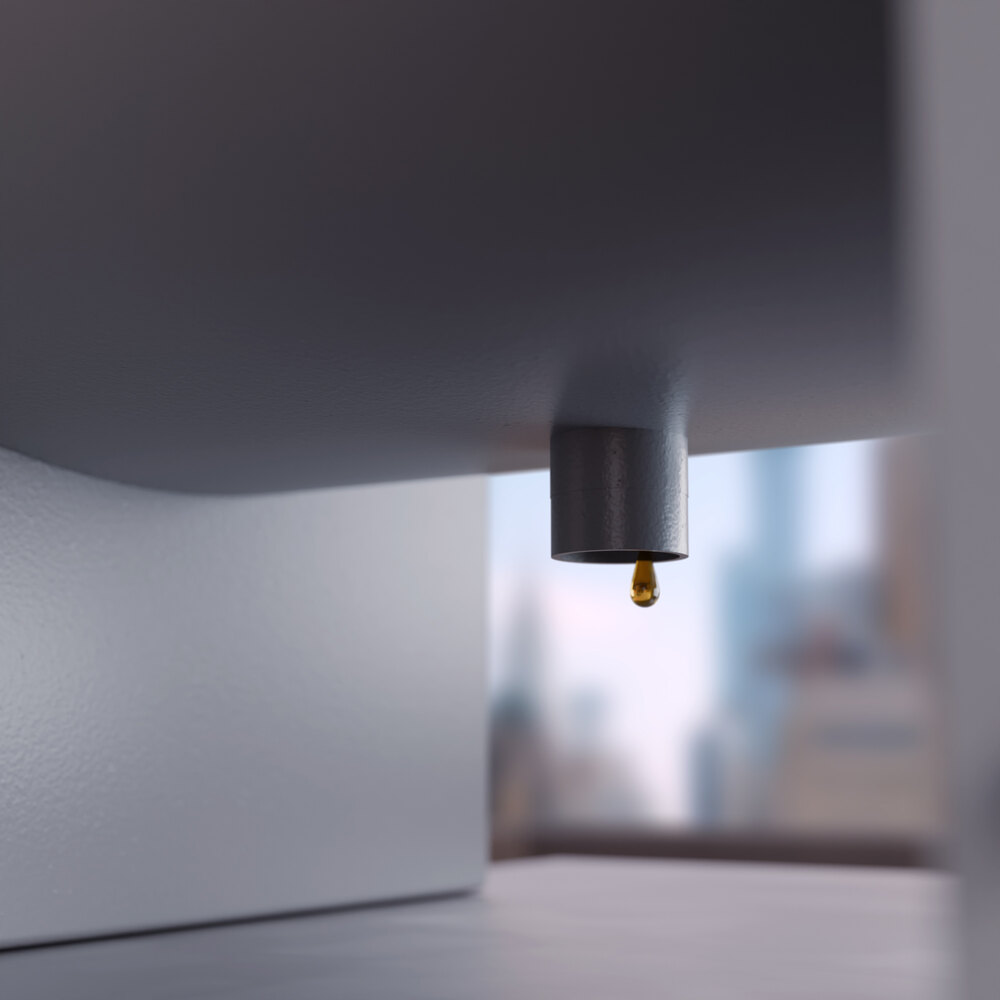

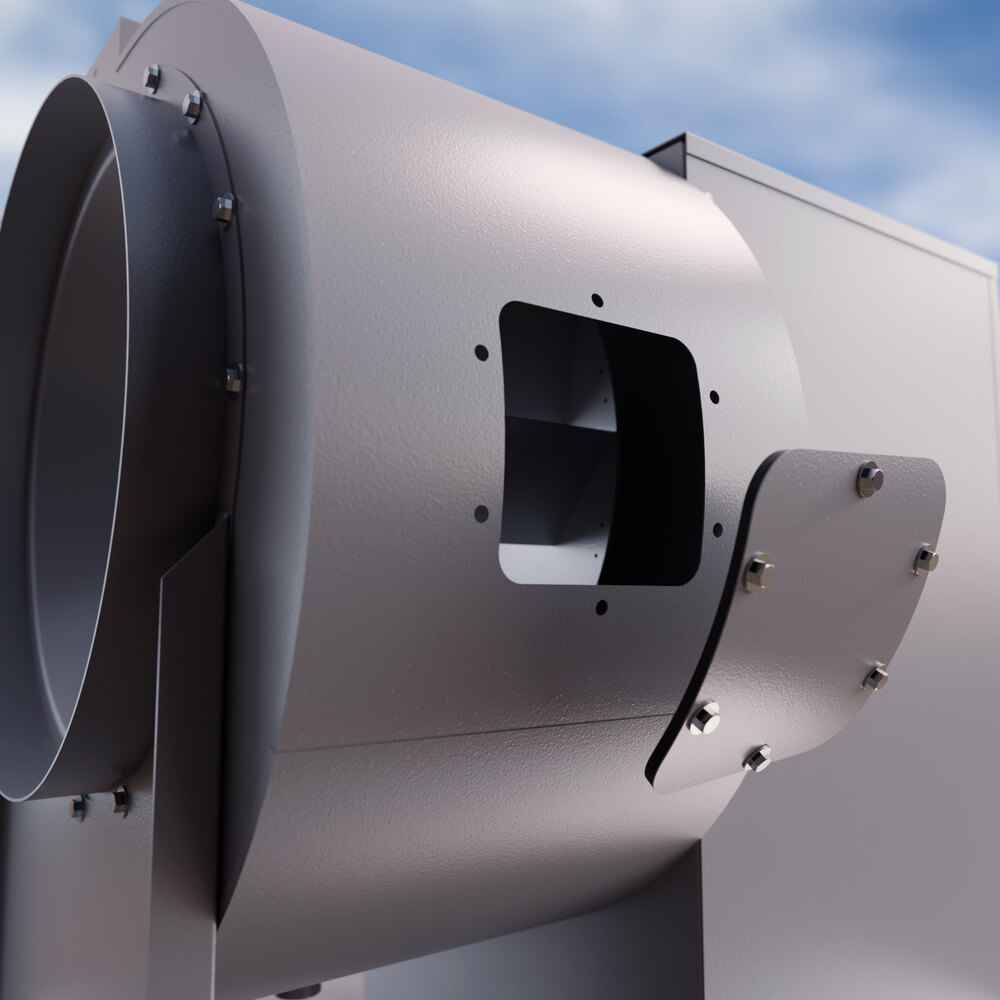

Enhance air quality in your industrial or commercial facility with this Canarm BI-13RM Series belt drive utility blower. This unit works to provide fresh air in your establishment. It boasts a 5 hp motor that delivers 2,450 CFM to 3,900 CFM. Built with continuously welded 16 gauge or heavier blower housing, a vinyl shaft seal, and heavy-duty pillow block ball bearings, this unit is suitable for long-term use. It is outfitted with a 2" drain for the removal of cleaning solutions. Plus, this unit comes with a bolted cleanout door to facilitate the cleaning and maintenance of the blower.

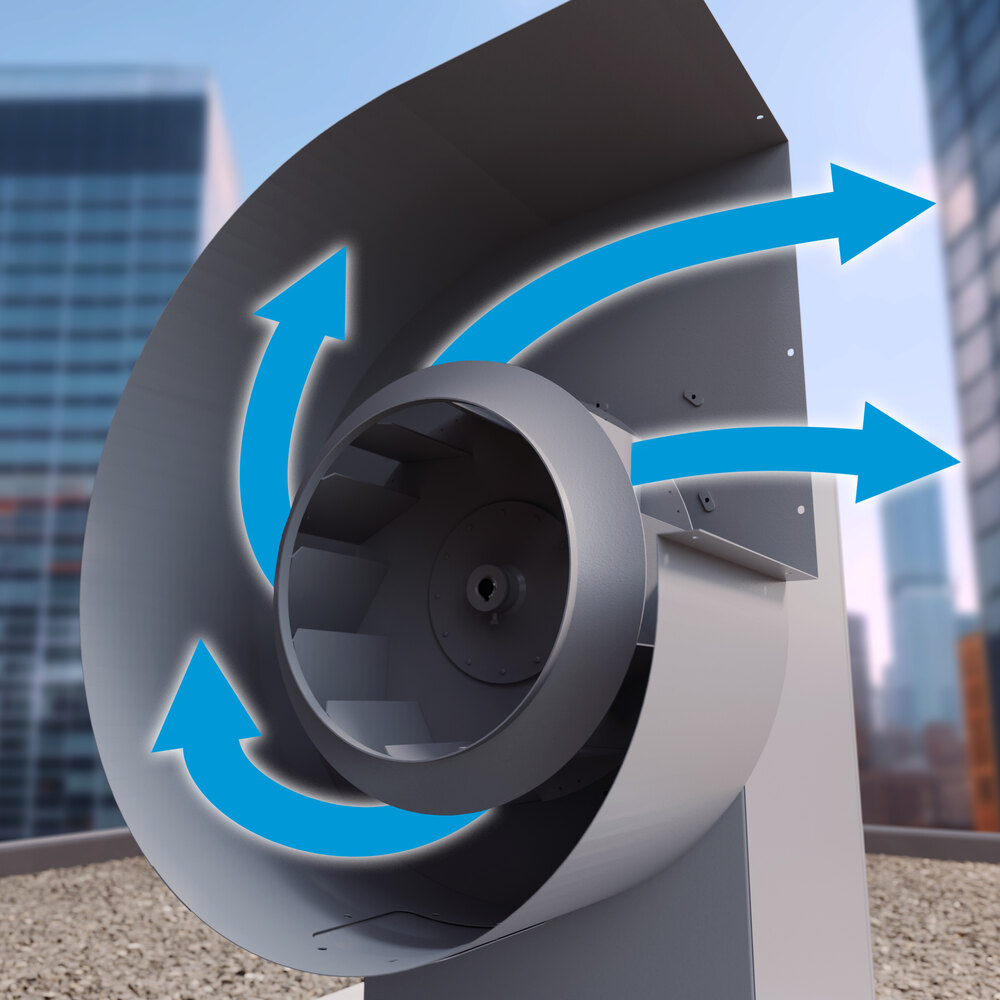

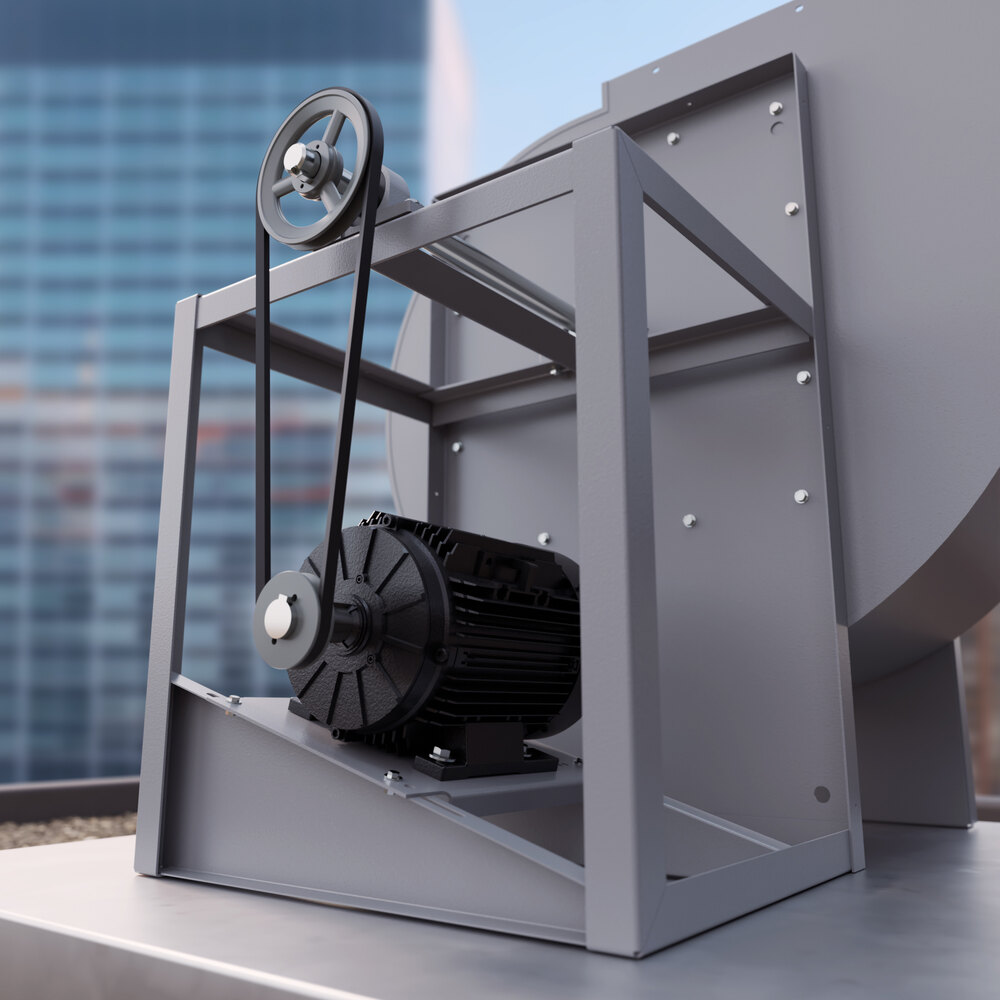

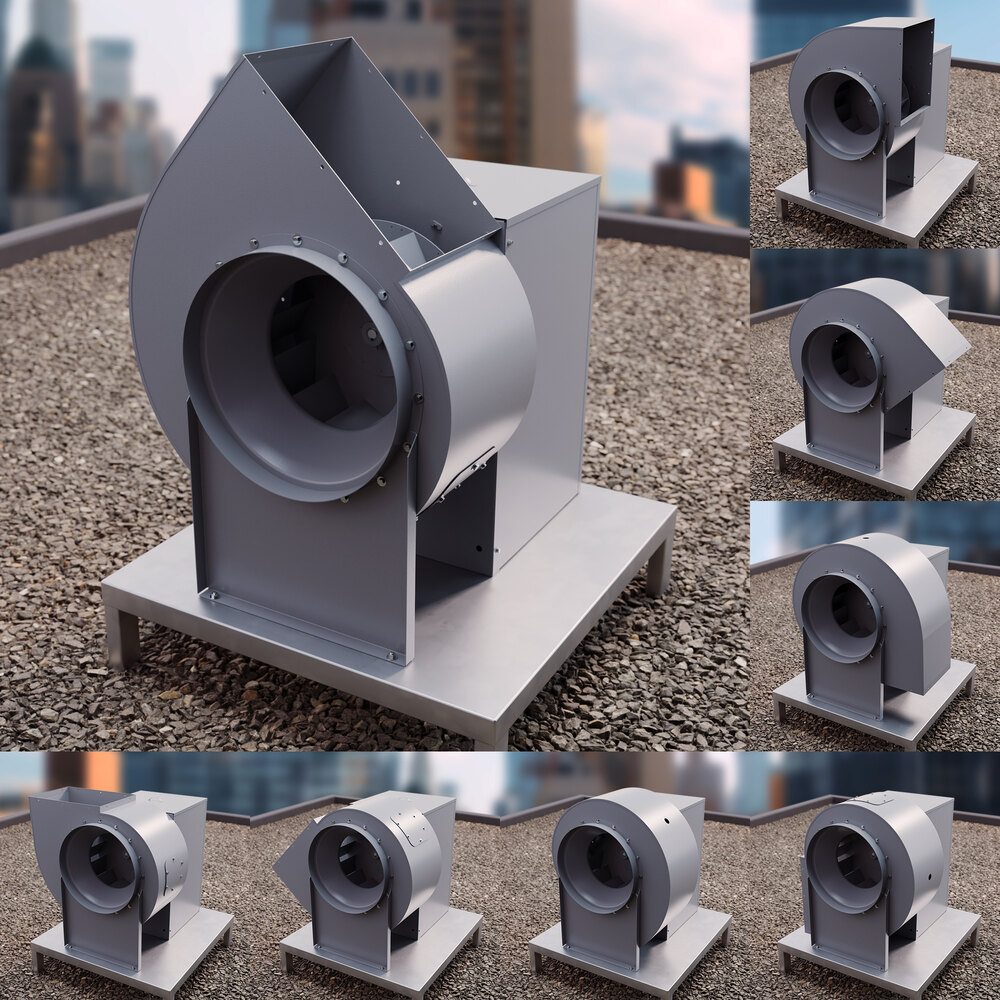

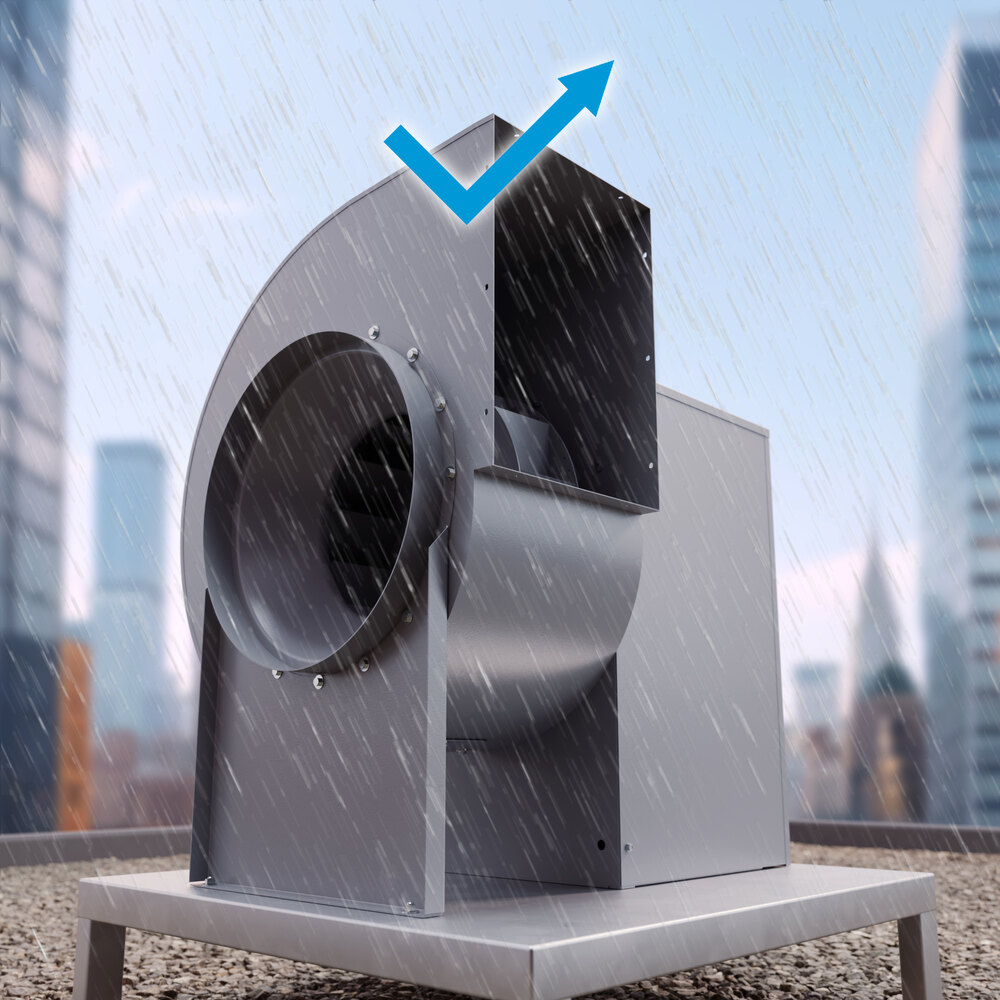

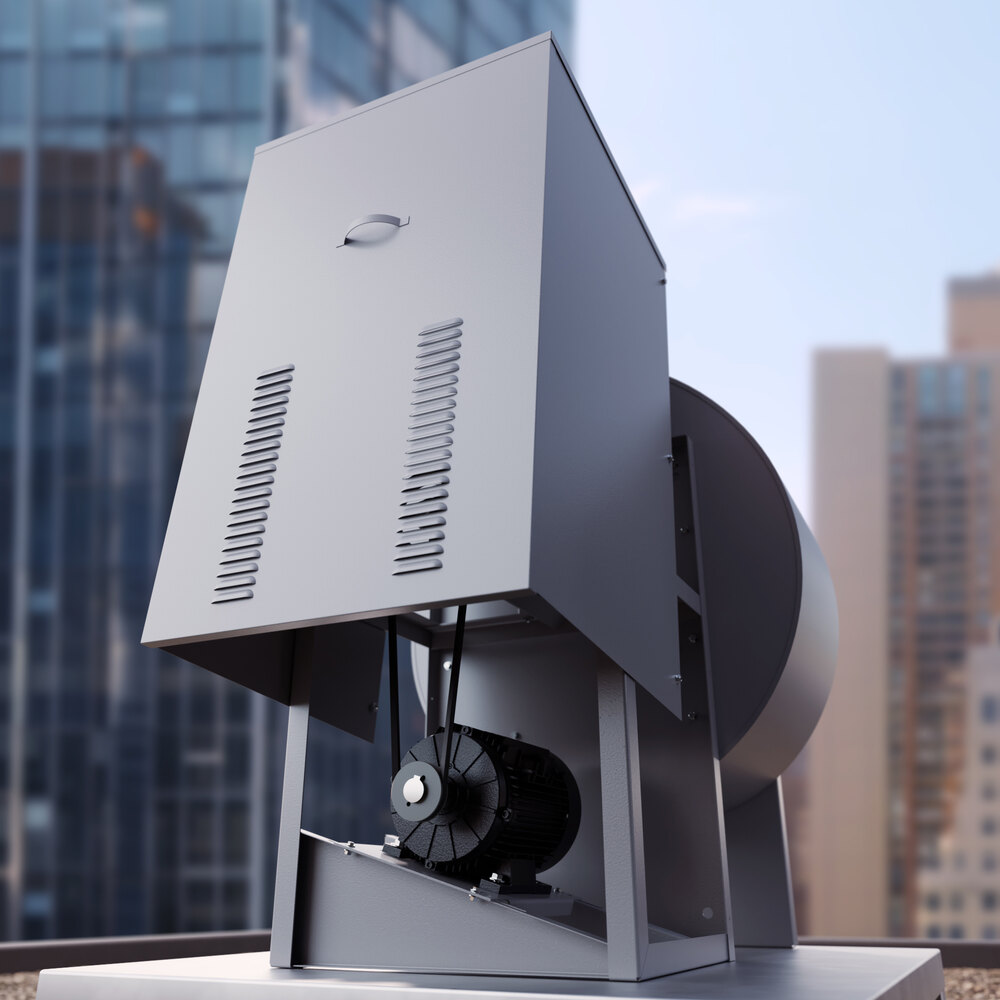

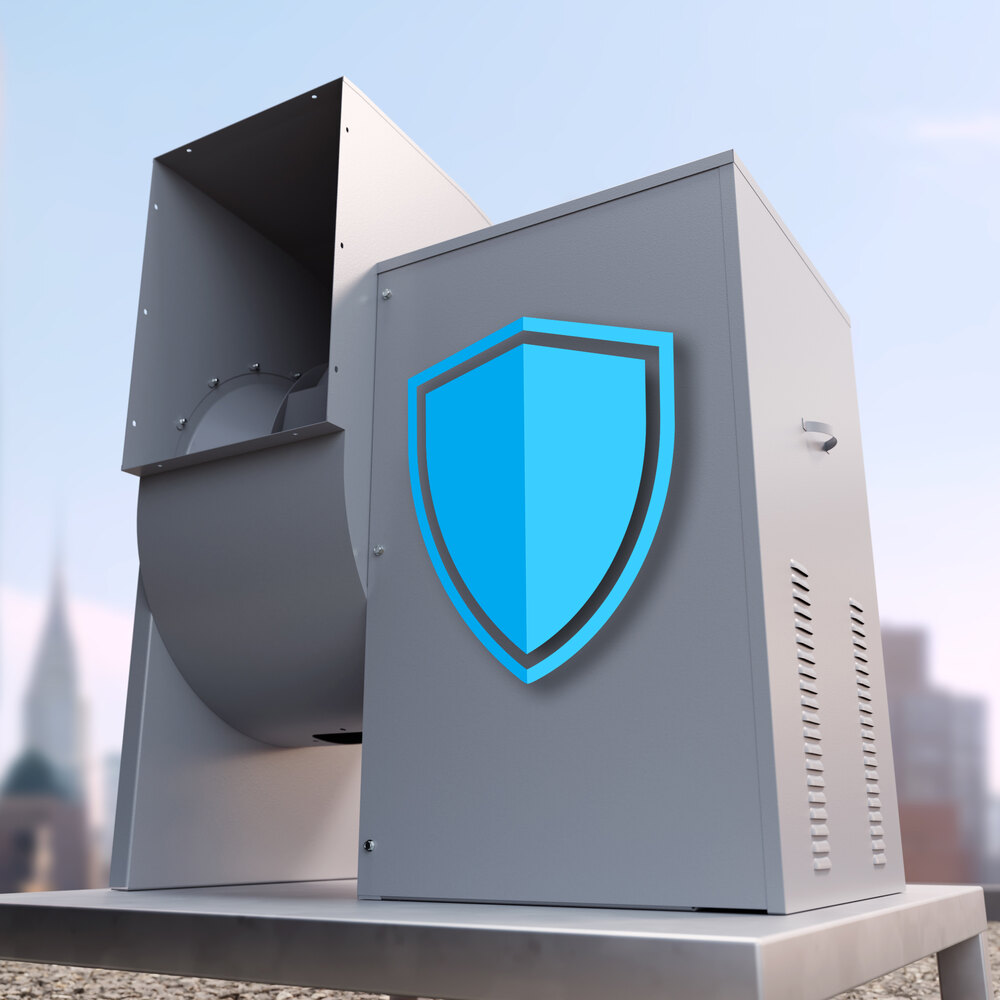

Coming with non-overloading backward inclined welded wheels, this unit is sure to operate smoothly and efficiently. The motor is vented to allow for maximum air flow, and the unit boasts a reliable belt drive system to power the blower's fan. The drive compartment cover protects the unit against weather damage, and it has handles that allow you to safely open and close the compartment. Designed with versatility in mind, the discharge position can be field rotated to eight different discharge positions. This unit is equipped with a counterclockwise rotation system. Easily access the motor from three sides of the unit for convenient maintenance.

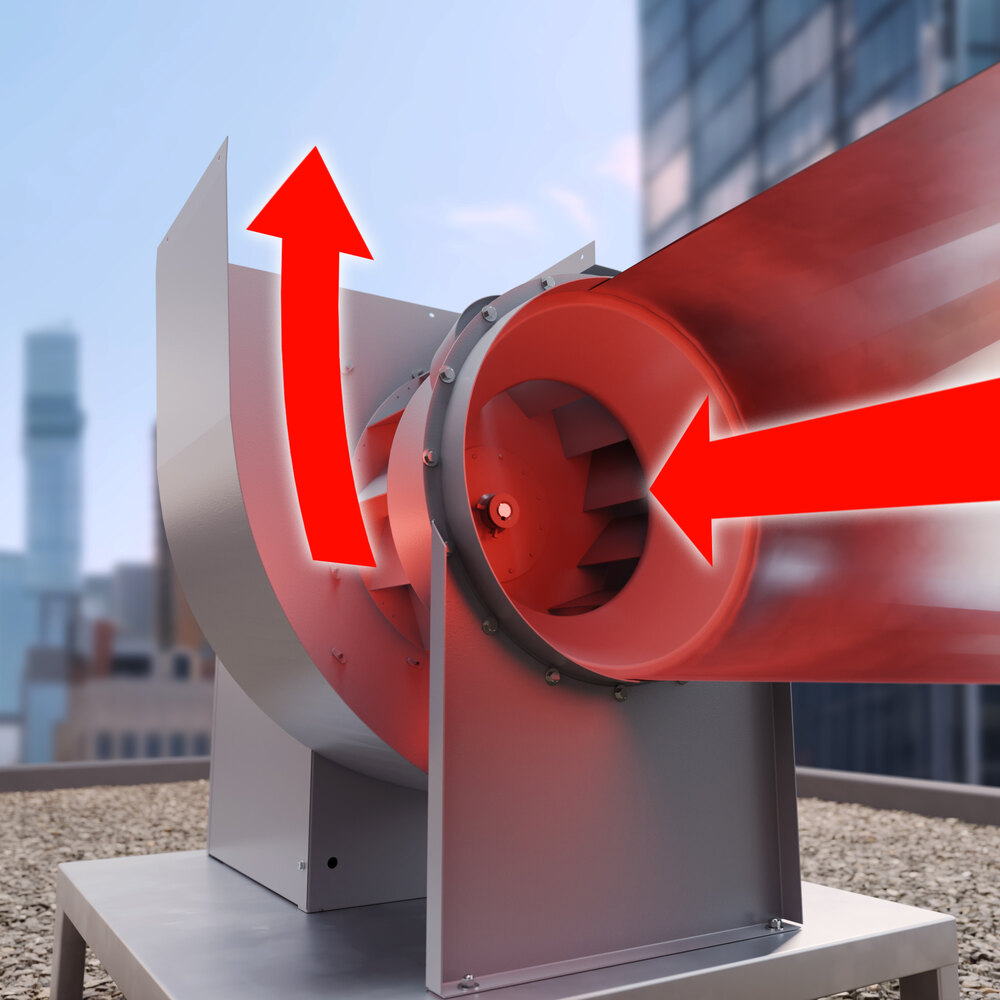

This unit requires a 3 phase, 208-230V/460V electrical connection for operation. It must be hardwired; a cord and plug are not included. Please be sure to review any relevant fire codes to your area before ordering a ventilation system and understand the requirements for any equipment going under your hood, as this may change from area to area. This unit meets NFPA 96 guidelines, and the air stream temperature rating is 250 degrees Fahrenheit.
Overall Dimensions:
Width: 24 1/2"
Depth: 34 1/4"
Height: 30 15/16"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
