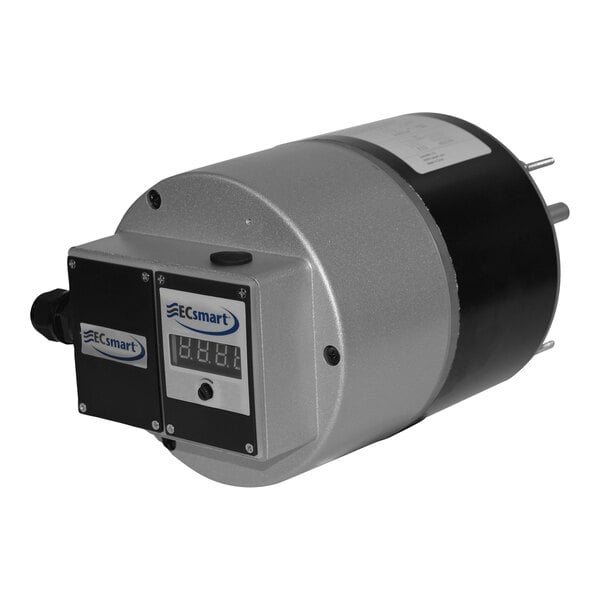

Canarm 8844100-RPM12 ECsmart ODP Motor for ALX180-DD100EC and ALX180-UD100EC

Canarm R-8844100-RPM12 Details

Enhance your industrial operations with the Canarm ECsmart ODP motor for ALX180-DD100EC and ALX180-UD100EC. This high-efficiency motor boasts an impressive efficiency rating of up to 85%, resulting in substantial watt savings ranging from 30% to 70%. It features a 1 hp motor with a variable speed ranging from 300 RPM to 1,200 RPM. Additionally, the motor is cool running and self-limiting, providing protection and longevity for reliable operation over time. The open drip-proof design ensures optimal ventilation, enhancing the motor's reliability. The motor features separate AC and DC power connection boxes for enhanced safety. The soft start feature not only guarantees a quiet operation but also reduces start-up amperage loads, contributing to a smoother and more energy-efficient operation.

Designed with a 48 NEMA frame, this motor is suitable for a wide range of applications. The motor requires remote mounted speed control in order to adjust settings based on your specific needs. The LED display conveniently indicates the RPM, allowing for easy monitoring as needed.

This motor is compatible with Canarm ALX180-DD100EC and ALX180-UD100EC fans (sold separately). This unit requires a 1 phase, 120V/208-280V electrical connection for operation. It must be hardwired; a cord and plug are not included.

Overall Dimensions:
Length: 8"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
