Canarm 48" 1-Speed Standard Wall Exhaust Fan SD48-H1D - 17,200 CFM, 1 Phase, 1 hp
Quick Shipping
Usually ships in 1 business day
Product Overview
- Improves air quality in commercial and industrial settings
- Durable welded steel construction with powder-coated finish
- 48" aluminum or steel blade with gray powder-coated heavy wire guards
- Thermal overload protection for safe use
- Efficient 1 hp motor produces up to 17,200 CFM; 230V, 1 phase
- Quantity
- 1/Each
- Shipping Weight
- 151 lb.
- Width
- 53 1/4 Inches
- Depth
- 19 Inches
- Height
- 53 1/4 Inches
- Blade Diameter
- 48 Inches
- Phase
- 1 Phase
- Voltage
- 230 Volts
- Assembly Options
- Fully Assembled
- Color
- Gray
- Horsepower
- 1 hp
- Installation Type
- Wall Mounted
- Material
- Aluminum Steel
- Max CFM
- 17,200 CFM
- Motor Type
- Open Ventilated
- RPM
- 850 RPM
- Speeds
- 1 Speed
- Style
- Fixed
- Type
- Wall-Mount Fans
Canarm SD48-H1D Details

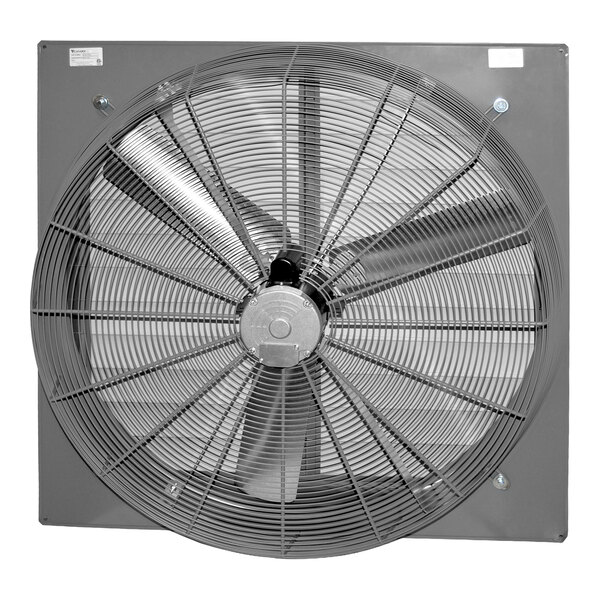

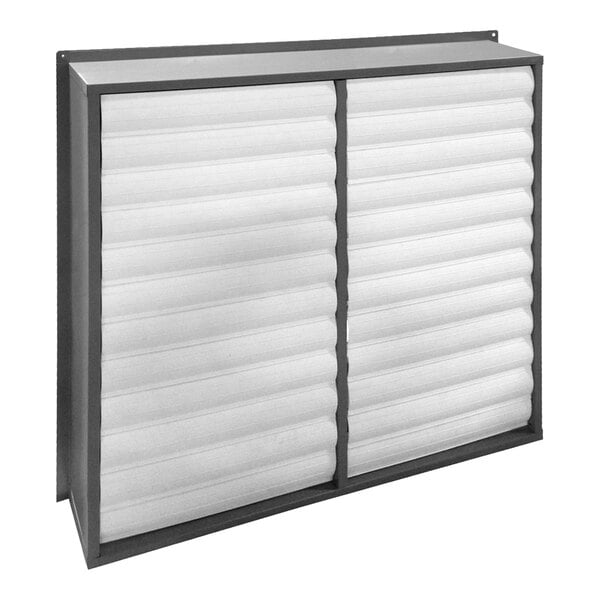

Ideal for industrial and commercial settings, this Canarm standard wall exhaust fan provides ventilation to improve air quality in your facility. This rugged fan includes aluminum or steel louver shutters with nylon bushings, allowing it to be installed from inside the wall without the need for external framing or shutters. For optimal performance, it features a 1-speed direct-drive, 1 hp motor that reaches up to 17,200 CFM and has a maximum RPM of 850.
This fan is housed in a sturdy welded steel box with a powder-coated finish for long-lasting use. It includes a durable 48" aluminum or steel blade protected by gray powder-coated heavy wire guards. The motor is completely enclosed, and it features thermal overload protection to prevent overheating. This unit requires a 230V, 1 phase electrical connection. For added convenience, it ships fully assembled and is simple to install using only four screws (sold separately).
Overall Dimensions:
Width: 53 1/4"
Depth: 19"
Height: 53 1/4"
Blade Diameter: 48"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Attention CA Residents:
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
Fully Assembled
This item arrives fully assembled, and requires no additional assembly prior to use.
