Canarm 12" 1-Speed Shutter-Mounted Explosion-Proof Exhaust Fan AX12-4M - 1,670 CFM, 3 Phase, 1/3 hp
Item number 664ax124mMFR number AX12-4M
$1,039.00/Each
Ships free with
Earn up to $31.17 back (3,117 points)with a Webstaurant Rewards Visa® Credit Card
Usually Ships in 3-5 Business Days from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Improves air quality in your commercial or industrial facility
- Durable heavy-duty aluminum housing with built-in shutters
- 12" fan blade protected by chrome-plated wire guards
- Shutters automatically open when the fan starts and close when the fan stops
- Efficient 1/3 hp motor produces up to 1,670 CFM; 230/460V, 3 phase
Works With
- Quantity
- 1/Each
- Shipping Weight
- 49 lb.
- Width
- 16 3/4 Inches
- Depth
- 18 3/4 Inches
- Height
- 16 3/4 Inches
- Blade Diameter
- 12 Inches
- Amps
- 6.6/3.3 Amps
- Phase
- 3 Phase
- Voltage
- 230/460 Volts
- Color
- Gray
- Features
- Shutters
- Horsepower
- 1/3 hp
- Installation Type
- Shutter Mounted
- Material
- Aluminum
- Max CFM
- 1,670 CFM
- Motor Type
- Enclosed
- Plug Type
- Hardwire
- RPM
- 1,725 RPM
- Speeds
- 1 Speed
- Type
- Shutter-Mounted Fans
- Usage
- Indoor

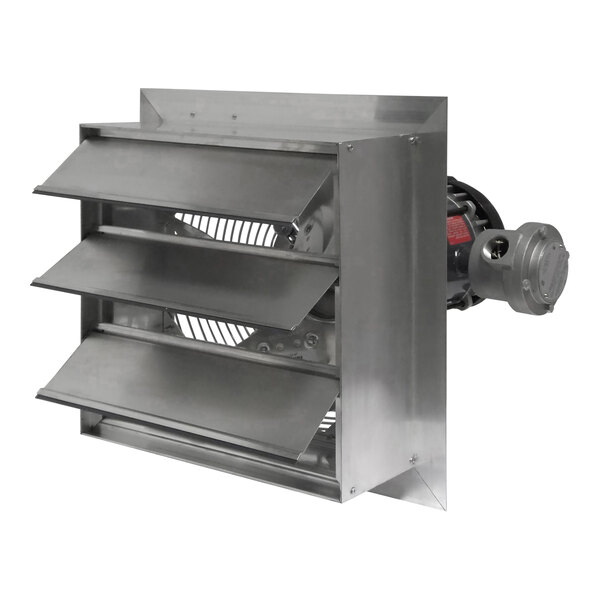

Canarm AX12-4M Details
Enhance the air quality in your facility with this Canarm shutter-mounted exhaust fan. This sturdy unit works to provide general ventilation and improve airflow in your establishment. It installs from inside the wall without the need for external framing or shutters. This horizontally discharging fan features a powerful 1-speed, direct-drive 1/3 hp motor to allow the fan to meet a variety of needs and preferences. The ball bearing motor is totally enclosed with thermal overload protection and features an explosion-proof design that won't spark or accumulate static, ensuring safe use and peace of mind. For efficient operation, it reaches up to 1,670 CFM and has a maximum RPM of 1,725.
Perfect for use in factories, garages, warehouses, and other industrial, commercial, and farming facilities, this fan includes a durable heavy-duty aluminum housing with all-aluminum extrusions for long-lasting use. It features a 12" blade protected by chrome-plated wire guards for superior safety. It also has built-in shutters that automatically open when the fan starts and close when the fan stops. This not only easily indicates when the fan is turned on or off, but it also helps control dust and other particulates from entering. This unit requires a 230/460V, 3 phase electrical connection for operation. It ships fully assembled for your convenience.
Overall Dimensions:
Width: 16 3/4"
Depth: 18 3/4"
Height: 16 3/4"
Blade Diameter: 12"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
