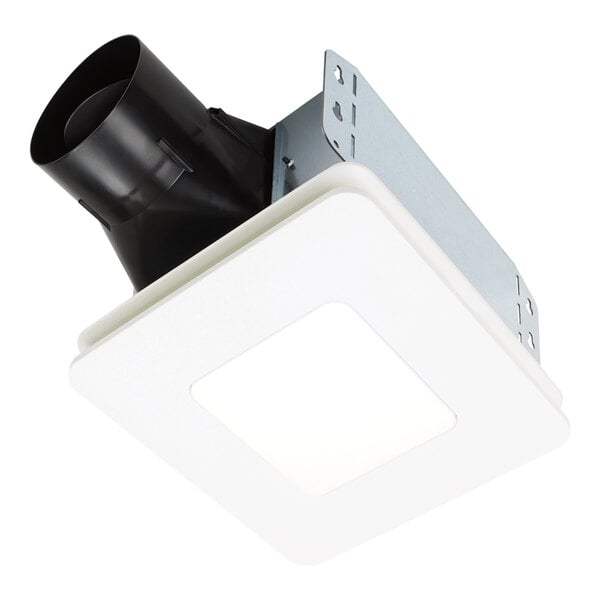

Broan Roomside Series Exhaust Fan with LED Light BEL6 - 60 CFM
$119.99/Each
Quick Shipping
Usually ships in 1 business day
Product Overview
- Permanently lubricated AC motor delivers up to 60 CFM
- 26 gauge galvanized steel housing resists corrosion
- LED light lasts for up to 50,000 hours
- 4" duct fitting with a tapered sleeve
- Operates at low noise levels
- Quantity
- 1/Each
- Shipping Weight
- 7.4 lb.
- Length
- 7 1/2 Inches
- Width
- 7 1/4 Inches
- Height
- 5 3/4 Inches
- Diameter
- 4 Inches
- Duct Length
- 4 1/4 Inches
- Grille Length
- 9 3/4 Inches
- Grille Width
- 9 3/4 Inches
- Amps
- 0.6 Amp
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 120 Volts
- Wattage
- 17.9 Watts
- Color
- White
- Coverage Area
- 45 sq. ft.
- Features
- Energy Star Qualified LED Lighting Made in America
- Gauge
- 26 Gauge
- Material
- Polymer Steel
- Max CFM
- 60 CFM
- Motor Type
- Direct Drive
- Noise Level
- 0.9 Sone
- Plug Type
- Hardwire
- Power Type
- Electric
- Speeds
- 1 Speed
- Type
- Bathroom Fans Ventilator Fans
Broan-NuTone BEL6 Details
Quickly remove moisture, odors, and pollutants from small rooms with this Broan Roomside series exhaust fan. Ideal for use in rooms up to 45 sq. ft., this fan provides powerful ventilation for humidity-prone environments. This unit's direct drive AC motor is permanently lubricated for smooth, continuous operation and delivers up to 60 CFM while using just 0.6 amps of power. It operates at low noise levels of just 0.9 sones to help maintain a quiet environment in your facility.
This unit is made of 26 gauge galvanized steel to resist corrosion and stand up to moisture. Its bright white polymer grille cover promotes a neat, professional look that's sure to blend into any environment. Plus, the SideClip grille features springless attachment for easy installation and cleaning. This versatile fan also includes a 12.7W LED light with 3500K color temperature for soft white illumination. The light is dimmable with a compatible wall control (sold separately) and lasts for up to 50,000 hours of maintenance-free convenience.
This unit features a 4" duct fitting with a tapered sleeve for easy duct connection. This fitting includes a non-metallic damper to prevent cold and warm air backdrafts. The blower assembly has a dynamically balanced centrifugal wheel for quiet, efficient performance. This fan is designed for ducting to a roof or wall cap and enables quick and easy 4-point mounting directly to the joist. Its 5 3/4" height allows for 2" x 6" ceiling installations. This fan requires a 120V connection and must be hardwired.
Housing Dimensions:
Length: 7 1/2"
Width: 7 1/4"
Height: 5 3/4"
Grille Dimensions:
Length: 9 3/4"
Width: 9 3/4"
Duct Fitting Dimensions:
Diameter: 4"
Length: 4 1/4"
Attention CA Residents:
Made in America
This item was made in the United States of America.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
UL Listed, US & Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
