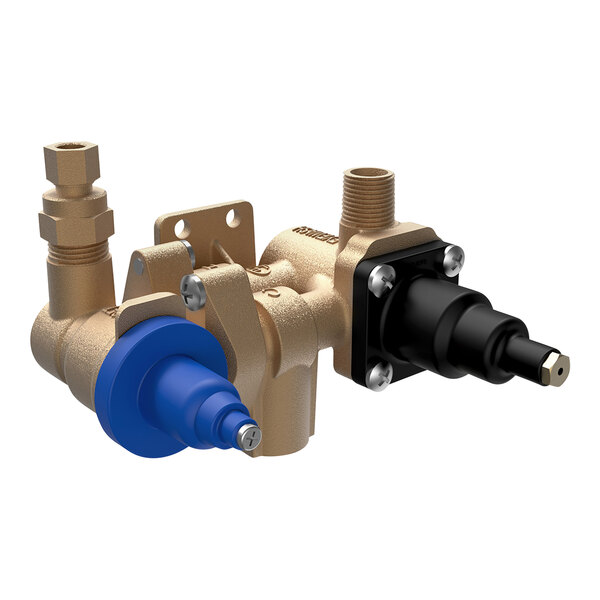

Bradley S19-2010 Navigator Thermostatic Mixing Valve
$999.00/Each
Ships free withEarn up to $29.97 back (2,997 points)with a Webstaurant Rewards Visa® Credit Card
Product Overview
- 2-in-1 valve design saves valuable space
- 125 PSI maximum operating pressure
- Temperature control is accurate within +/- 3 degrees Fahrenheit
- Built-in cold water bypass to assure cold flow
- Dirt- and lime-resistant
- Quantity
- 1/Each
- Shipping Weight
- 4.5 lb.
- Width
- 4 1/2 Inches
- Depth
- 6 1/4 Inches
- Height
- 6 Inches
- Features
- Made in America NSF Listed
- Material
- Brass
- PSI
- 125 PSI
- Temperature Range - Eyewash
- 65 - 90 Degrees F
- Temperature Range - Faucet
- 95 - 120 Degrees F
- Type
- Mixing Valves
- Water Inlet Size
- 1/2 Inch
- Water Outlet Size
- 1/2 Inch
Bradley S19-2010 Details
Ensure precise temperature control and safety with this Bradley Navigator thermostatic mixing valve. This innovative valve delivers both tepid and tempered water to faucet / eyewash applications. Its 2-in-1 design saves valuable space under the sink. It guarantees accurate temperature control with a variance of only + / - 3 degrees Fahrenheit. The built-in cold water bypass ensures a constant flow of cold water even when hot water is being used, providing consistent and reliable water temperatures.
This valve is designed to resist dirt and lime buildup, ensuring long-lasting performance and reducing maintenance requirements. It has a maximum operating pressure of 125 PSI and can be mounted in any orientation, ensuring flexibility in your plumbing setup. It also has 1/2" NPT inlet and outlet connections and includes a 3/8" compression fitting for easy connection to your faucet.
The valve also includes integral strainer check stops on the inlet, an adjustable set point within the temperature range, and positive shutoff of the hot supply in case of a cold water loss. There is a dependable liquid-filled thermostat on the eyewash valve and a wax-filled thermostat on the faucet valve. The faucet valve has a temperature range of 95-120 degrees Fahrenheit, and the eyewash valve is rated from 65-90 degrees Fahrenheit. This thermostatic mixing valve is a reliable solution to help regulate water temperature and protect against potential hazards.
Overall Dimensions:
Width: 4 1/2"
Depth: 6 1/4"
Height: 6"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Made in America
This item was made in the United States of America.
ASSE Certified
This product has been certified by ASSE International to meet safety and performance standards for plumbing and mechanical systems
IAPMO R&T, UPC Certified - USA & Canada
This product is certified by the International Association of Plumbing and Mechanical Officials (IAPMO) to meet Uniform Plumbing Code (UPC) standards for the USA and Canada.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
