$2,569.00/Each

Earn up to $77.07 back (7,707 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 1-2 Weeks from manufacturer

Lead times vary based on manufacturer stock

Not eligible for expedited shipping

Product Overview

  • Travels at speeds of up to 2 MPH when loaded
  • Includes a manual pump for lifting and lowering
  • Ergonomic operator handle with travel, reverse, and power controls
  • 3-position hydraulic lever provides safe, controlled load placement
  • Rigid reinforced steel C-channel construction with a powder-coated finish
UPC Code:400017220666

Big Joe Forklifts P33 Specs

Quantity
1/Each
Shipping Weight
362 lb.
Length
62 Inches
Width
27 Inches
Height
51 Inches
Fork Length
45 Inches
Fork Width
27 Inches
Height (Collapsed)
3 Inches
Battery Type
Sealed / Lead Acid
Capacity
3,300 lb.
Casters
With Casters
Color
Black Yellow
DC Voltage
24 Volts
Features
Ergonomic Handle Onboard Charger
Finish
Powder-Coated
Handle
With Handle
Material
Steel
Power Type
Battery Manual
Speeds
2 - 2.5 MPH
Style
Fork
Type
Pallet Trucks
Wheel Type
Polyurethane

Big Joe Forklifts P33 Details

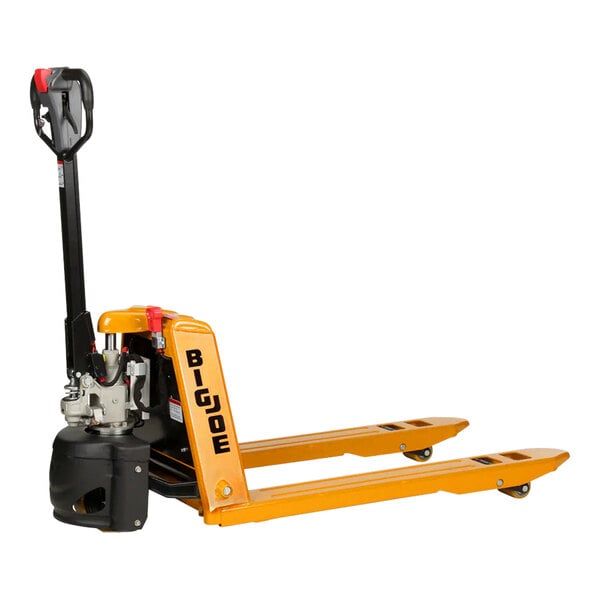

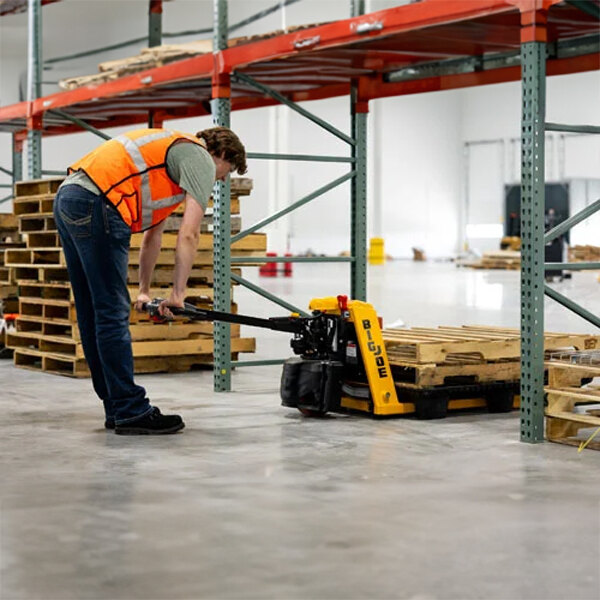

Easily transport heavy pallets, containers, and skids with this Big Joe pallet jack! This semi-electric pallet jack helps reduce operator strain caused by manually pushing and pulling loads. Its motorized design travels at a single speed in forward or reverse, while lifting and lowering is accomplished by a standard manual pump. It operates using a 24V brushless DV drive permanent magnet drive motor, and it supports loads up to 3,300 lb. It runs at a rate of up to 2.5 MPH when empty and up to 2 MPH when loaded.

This unit boasts an ergonomic operator handle with a push button travel control, a reversing switch, an on / off switch, and a horn. The wrap-around hand guard keeps your hand protected, while the low-mounted tiller arm offers excellent operator control. Its handle return spring always returns the operator handle to the vertical position. This unit also includes a 3-position hydraulic lever with lifting, neutral, and lowering positions, ensuring safe, controlled load placement.

This unit includes (2) 27" x 45" forks to lift and carry your loads. Its (2) 8 5/16" polyurethane drive tires and (2) 2 15/16" polyurethane load tires provide easy mobility, while its electromagnetic disc brake ensures easy parking. This unit is battery-operated using 30 Ah polycase batteries and an internal plug-in 110VAC charger. A battery discharge indicator on the handle alerts when the battery is low. This unit has a rigid reinforced steel C-channel construction with a powder-coated finish. Its precision welded pump assembly is fully sealed with a hardened chrome lift cylinder for long-lasting use. This unit is OSHA compliant for safe use.

Overall Dimensions:
Length: 62"
Width: 27"
Collapsed Height: 3"
Height: 51"
Capacity: 3,300 lb.

Fork Dimensions:
Length: 45"
Width: 27"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Due to US DOT shipping regulations, we are unable to ship this product to Alaska, Hawaii, and international destinations. It is also ineligible for next day or second day shipping and cannot be returned. Please contact Customer Solutions prior to placing your order if you have any questions or concerns.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
