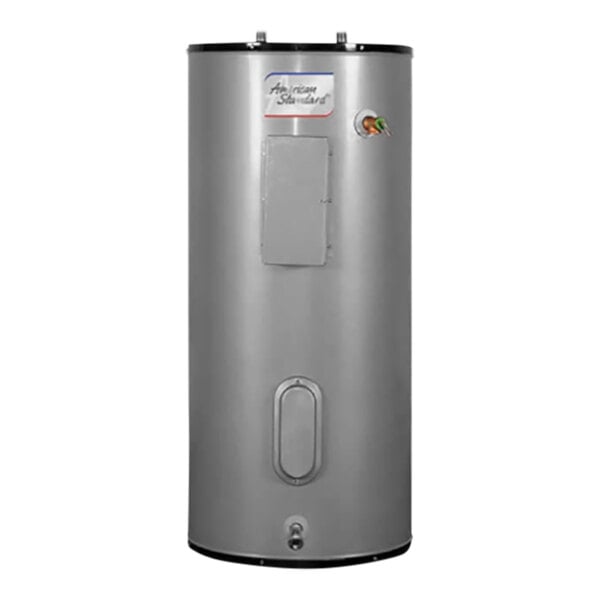

American Standard Water Heaters LDS-CE-30-T 30 Gallon Light-Duty Electric Water Heater - 240V, 4.5kW
$999.00/Each
Ships free with
Earn up to $29.97 back (2,997 points)with a Webstaurant Rewards Visa® Credit Card
Usually Ships in 1-2 Weeks from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Heavy-gauge, glass-lined 30 gallon steel tank
- 3" thick insulation foam for improved energy efficiency
- Low-watt density incoloy heating elements for efficient operation
- Automatic thermostats for optimal temperature control
- Full-flow brass drain valve enables quick drainage
- Quantity
- 1/Each
- Shipping Weight
- 95 lb.
- Height
- 48 Inches
- Diameter
- 18 1/4 Inches
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 240 Volts
- Wattage
- 4.5 Kilowatts
- Application
- Multiple Points of Use
- Color
- Gray
- Features
- Field-Convertible (Electrical)
- Installation Type
- Stationary
- Insulation Material
- Polyurethane Foam
- Material
- Steel
- Maximum Pressure
- 150 PSI
- Plug Type
- Hardwire
- Power Type
- Electric
- Style
- With Tank
- Tank Capacity
- 30 Gallons
- Type
- Water Heaters
- Usage
- Indoor
- Water Inlet Size
- 3/4 Inches
American Standard Water Heaters LDS-CE-30-T Details
Instantly meet your facility's hot water demands with this American Standard Water Heaters light-duty electric water heater. Boasting 4.5kW of power, this unit includes a heavy-gauge 30 gallon steel tank lined with DuraGlas and fired at 1,600 degrees Fahrenheit for optimal protection against corrosion. It also features magnesium anodes for extended tank life, along with dual low-watt density incoloy heating elements for efficient operation and longevity. Its full-flow brass drain valve allows for easy drainage, while the manual energy cut-off feature helps prevent overheating. Its flexible design makes the unit easily field convertible to suit your installation needs.
This unit features 3" thick foam insulation to maximize heat retention. Plus, fully automatic surface thermostats enable optimal temperature control. For added safety, the unit comes with a temperature and pressure relief valve, ensuring pressure regulation for reliable operation. It has a turbulence-inducing dip tube that's built to reduce sediment buildup inside the tank. It comes complete with factory-installed heat traps to minimize standby heat loss. This unit is rated to 150 PSI working pressure and has a 20 GPH recovery at a 90-degree rise. It has an impressive Uniform Energy Factor (UEF) of 0.92. It requires a 240V, 1 phase electrical connection to operate.
Overall Dimensions:
Diameter: 18 1/4"
Height: 48"
Capacity: 30 gallons
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
3/4" Water Connection
This unit comes with a 3/4" water connection for water supply.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
