American Standard Water Heaters CE-80-AS-18 80 Gallon Heavy-Duty Electric Water Heater - 240V, 18kW
Usually Ships in 1-2 Weeks from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Heavy-gauge, glass-lined 80 gallon steel tank
- 3" thick insulation foam for improved energy efficiency
- Heating elements feature dry fire protection and reduced lime accumulation
- Easily field convertible to suit a variety of needs
- Full-flow brass drain valve enables quick drainage
- Quantity
- 1/Each
- Shipping Weight
- 366 lb.
- Height
- 56 3/4 Inches
- Diameter
- 28 1/4 Inches
- Hertz
- 60 Hz
- Phase
- 3 Phase
- Voltage
- 240 Volts
- Wattage
- 18 Kilowatts
- Application
- Multiple Points of Use
- Color
- Gray
- Features
- Field-Convertible (Electrical)
- Installation Type
- Stationary
- Insulation Material
- Polyurethane Foam
- Material
- Steel
- Maximum Pressure
- 150 PSI
- Plug Type
- Hardwire
- Power Type
- Electric
- Style
- With Tank
- Tank Capacity
- 80 Gallons
- Type
- Water Heaters
- Usage
- Indoor
- Water Inlet Size
- 1 1/2 Inches
American Standard Water Heaters CE-80-AS-18 Details

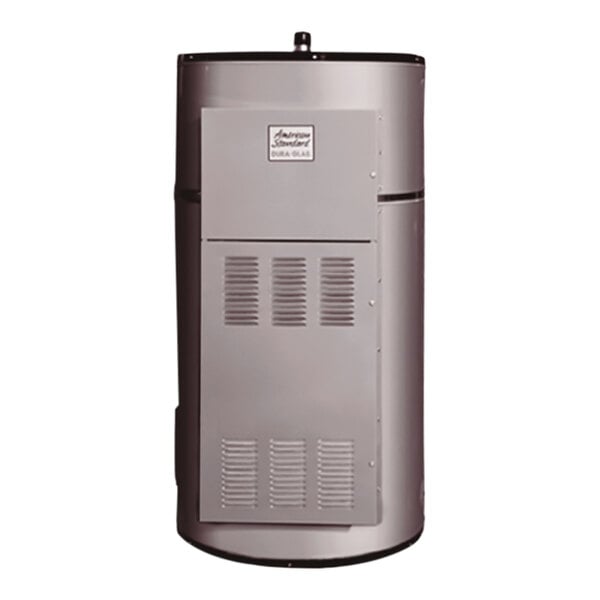

Instantly meet your facility's hot water demands with this American Standard Water Heaters heavy-duty electric water heater. Boasting 18kW of power, this unit includes a heavy-gauge 80 gallon steel tank lined with DuraGlas and fired at 1,600 degrees Fahrenheit for optimal protection against corrosion. It also features magnesium anodes for extended tank life, along with low-watt density incoloy heating elements that feature dry fire protection and reduced lime accumulation. Its full-flow brass drain valve allows for easy drainage.
This unit is easily field convertible to suit a variety of needs. It features 3" thick foam insulation to maximize heat retention. Plus, each of the 3 heating elements features an automatic surface thermostat for variable temperature control. The thermostats are fully adjustable to 180 degrees Fahrenheit. For added convenience, this unit comes complete with a factory-installed fuse box and factory pre-wired control box. A full-size hand hole cleanout enables easy tank inspection and sediment removal. For added safety, the unit comes with a pre-installed temperature and pressure relief valve, streamlining installation and ensuring pressure regulation for reliable operation. This unit is rated to 150 PSI working pressure and has an 83 GPH recovery at a 90-degree rise. It requires a 240V, 3 phase electrical connection to operate.
Overall Dimensions:
Diameter: 28 1/4"
Height: 56 3/4"
Capacity: 80 gallons
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
1 1/2" Water Connection
This unit comes with a 1 1/2" water connection for water supply.
